View 390 Air PC Case

The View 390 Air combines modern design with high cooling performance and a clear, airflow-optimized layout. The combination of thoughtful functionality, elegant lines, and support for the latest motherboard technologies makes this case the ideal choice for advanced builds and tidy system presentations.

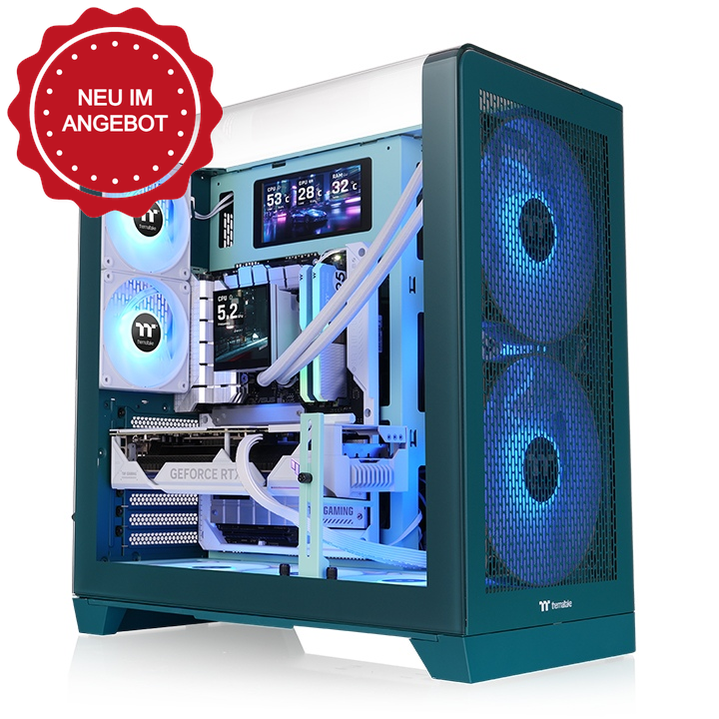

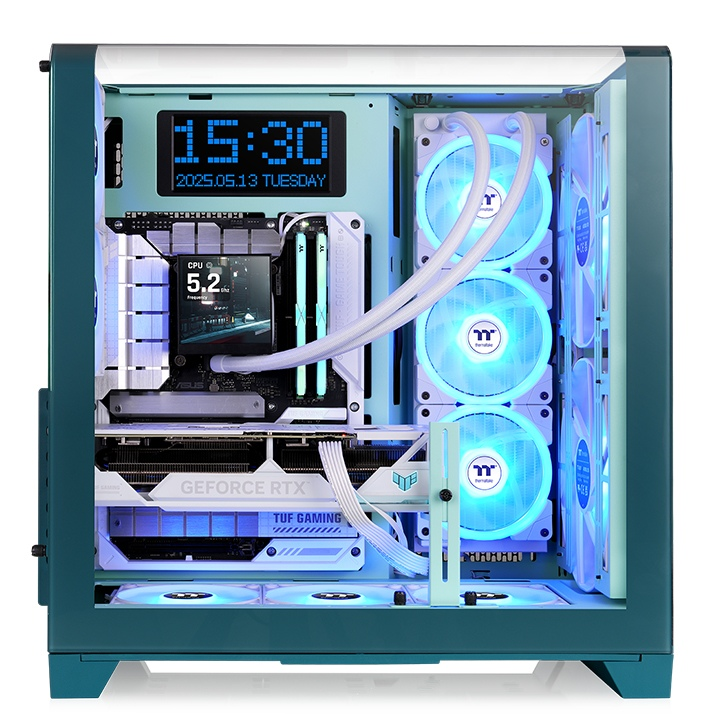

Panoramic view through curved tempered glass

The centerpiece of the look is the continuous curved 4 mm tempered glass panel that extends from the top to the left side panel. This seamless window offers an unobstructed view of the interior and visually showcases components perfectly. The design is complemented by a large mesh front panel that allows unrestricted air intake – ideal for quiet and powerful builds.

Motherboard compatibility

The case supports ATX, Micro-ATX, and Mini-ITX motherboards and is fully compatible with the new Hidden Connector motherboards from leading manufacturers such as ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH. The clear separation of hardware and cable management ensures a particularly clean look and simplifies cable routing.

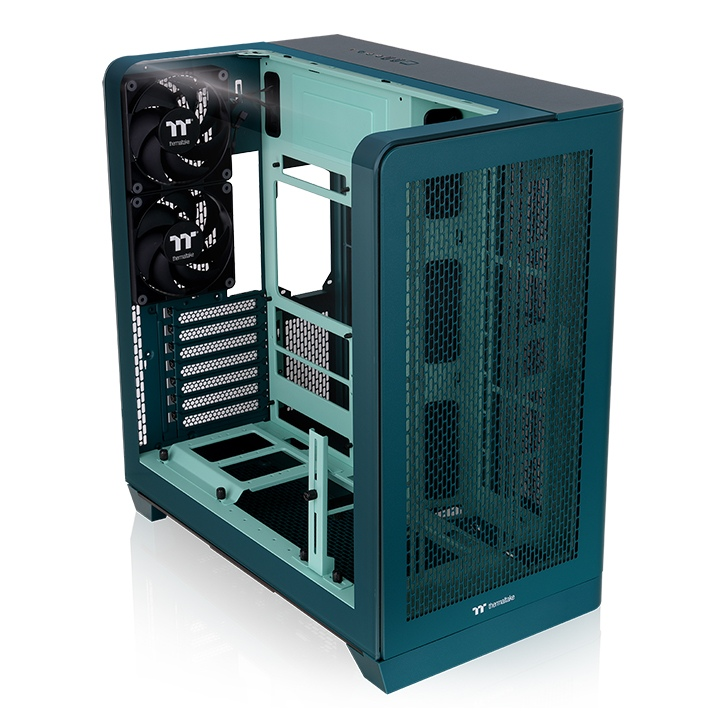

Expandable cooling and quiet airflow

Pre-installed are two CT120 ARGB PWM fans with an operating range of 500–2000 RPM, an airflow of 57.05 CFM, and a noise level of only 25.8 dBA. In total, up to eleven 120 mm fans can be installed – including two 200 mm fans at the front. For water cooling, radiator slots up to 360 mm are available at the front and on the motherboard side. This ensures optimal airflow control even with high-performance hardware.

GPU stability and vertical presentation

An integrated GPU bracket prevents heavy graphics cards from sagging and adds extra stability. Thanks to rotatable PCIe slots, a graphics card can also be mounted vertically – combined with a separately available riser cable, the GPU can be oriented with the cooler side facing the glass panel, greatly enhancing the visual presentation.

Storage and PSU clearance

Behind the motherboard tray, up to three 2.5” SSDs or alternatively two 3.5” HDDs and one 2.5” SSD can be installed. The case supports power supplies up to 260 mm in length (without SSD mounting) or 200 mm with an SSD installed – enough room for powerful PSUs even with modular cabling.

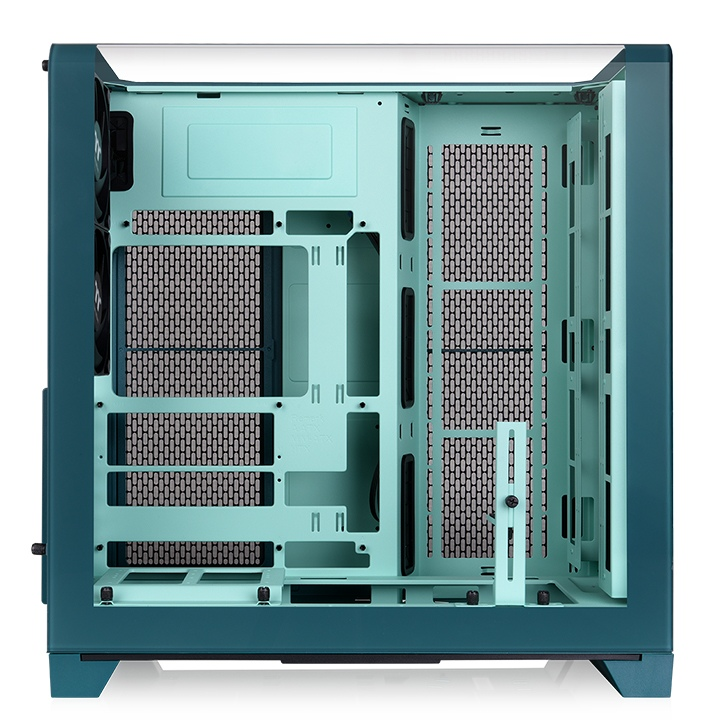

Dust protection and cable management

Removable dust filters at key air intakes reliably protect the system from dirt. The clear layout also creates plenty of space for clean cable management – supported by multiple anchor points and included Velcro straps.

Modern I/O panel and optional LCD expansion

The top I/O panel provides two USB 3.0 ports, one USB 3.2 Gen 2 Type-C, HD audio, a reset button, and an illuminated power button. Additionally, the case can be expanded with the optional LCD Screen Kit (6 inches), which can be used via TT RGB Plus software to display system stats or animations.
