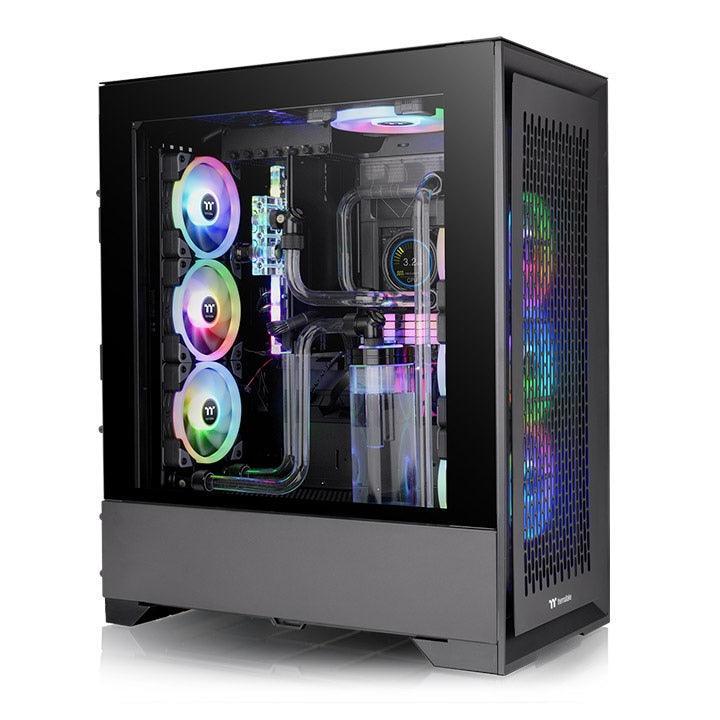

Ultimate cooling performance with the Thermaltake CTE T500 Air full-tower case
The Thermaltake CTE T500 Air Full-Tower Case is the perfect choice for those seeking maximum thermal efficiency and a stylish design. This specially designed E-ATX case from the new CTE form factor series focuses on improved airflow, providing outstanding cooling performance for critical components.
Central Thermal Efficiency (CTE)
The CTE form factor, developed by Thermaltake, stands for Centralized Thermal Efficiency and is designed to provide high levels of thermal performance to critical components. Rotating the motherboard 90 degrees creates more efficient airflow paths. The CPU is positioned closer to the front and the graphics card closer to the rear, allowing for independent cold airflow for heat dissipation.
Optimal cooling performance
The case comes with three pre-installed 140 mm CT140 fans and supports up to one 420 mm AIO radiator in the front and up to two 360 mm AIO radiators in the front and rear. This configuration ensures your components stay cool even under heavy load. A total of up to eleven 140 mm or 120 mm fans can be installed in the case for maximum cooling performance.
Well-thought-out design

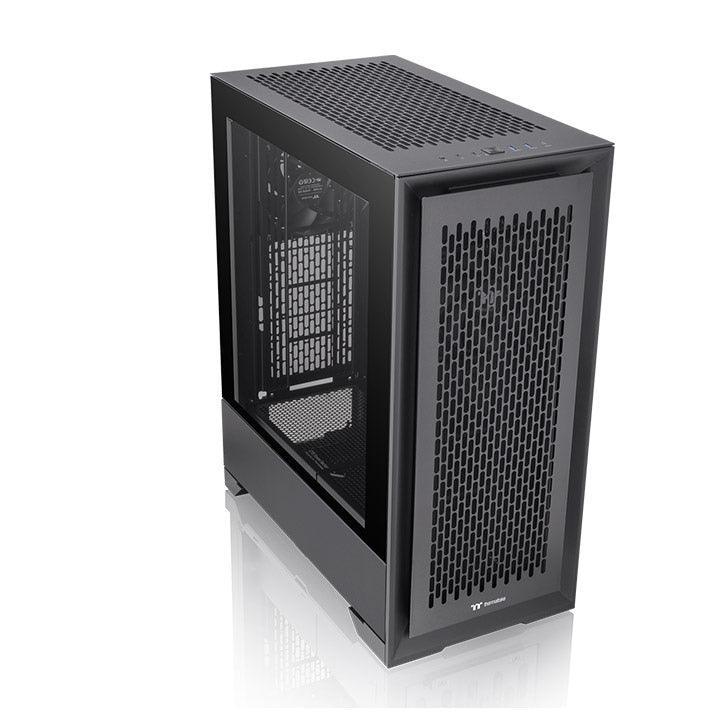

More than 55% of the case's panels are perforated, ensuring excellent air circulation. The case is also compatible with a separately sold LCD panel kit, which offers a round 2.1-inch LCD display to fully showcase your PC's visual effects.
Versatile color options

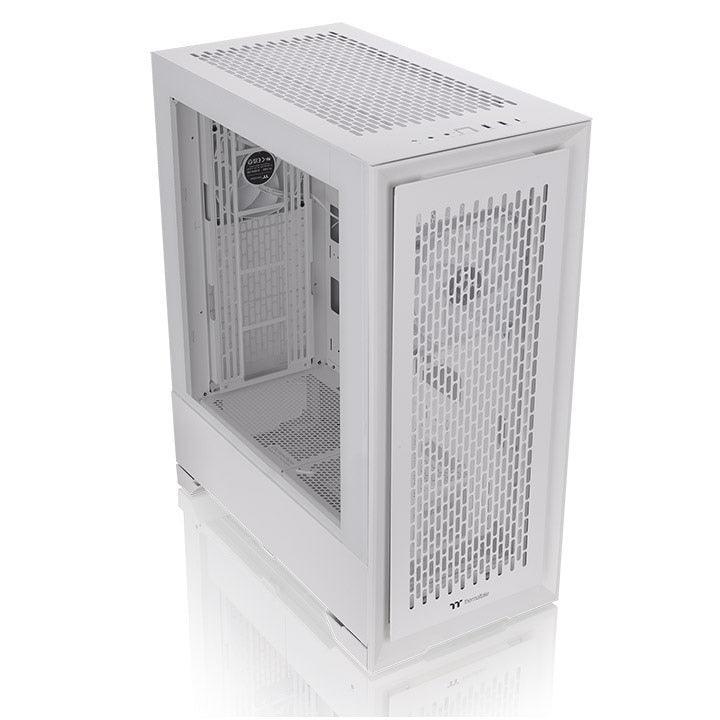

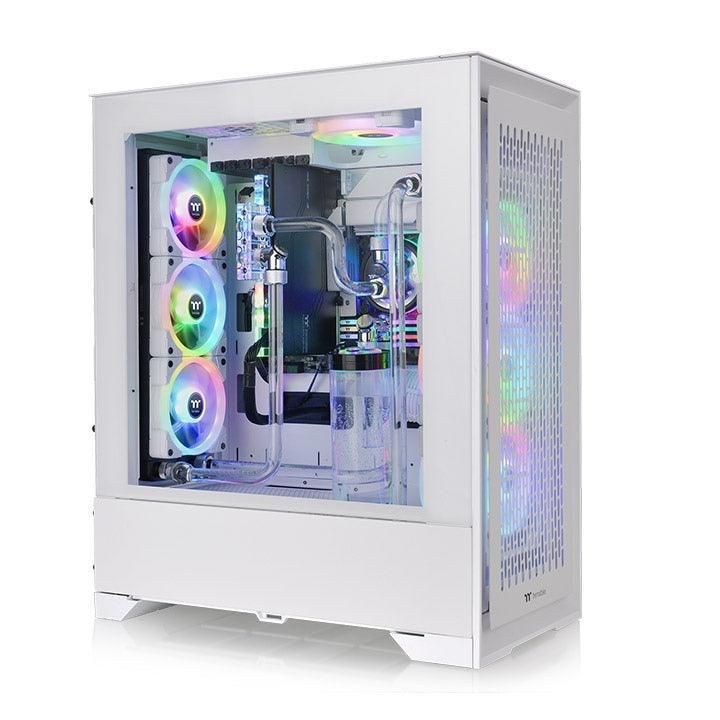

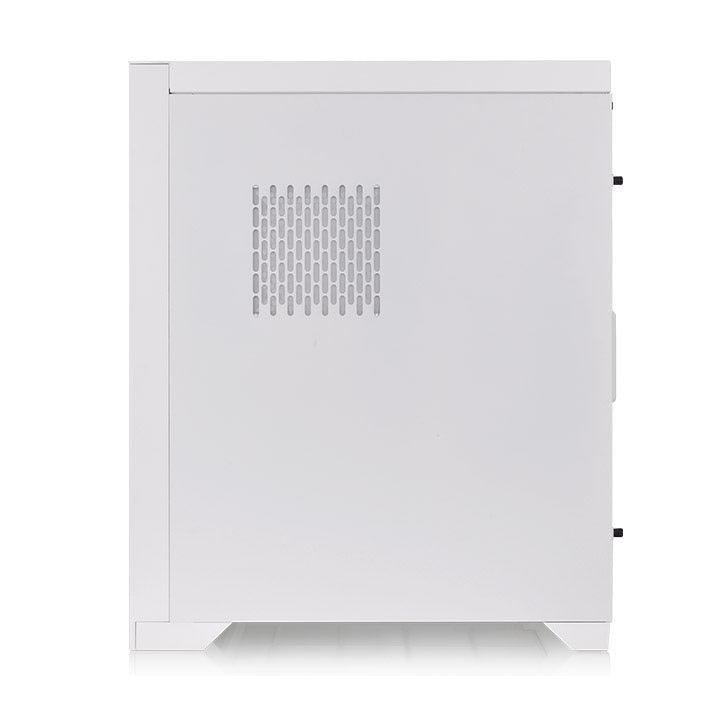

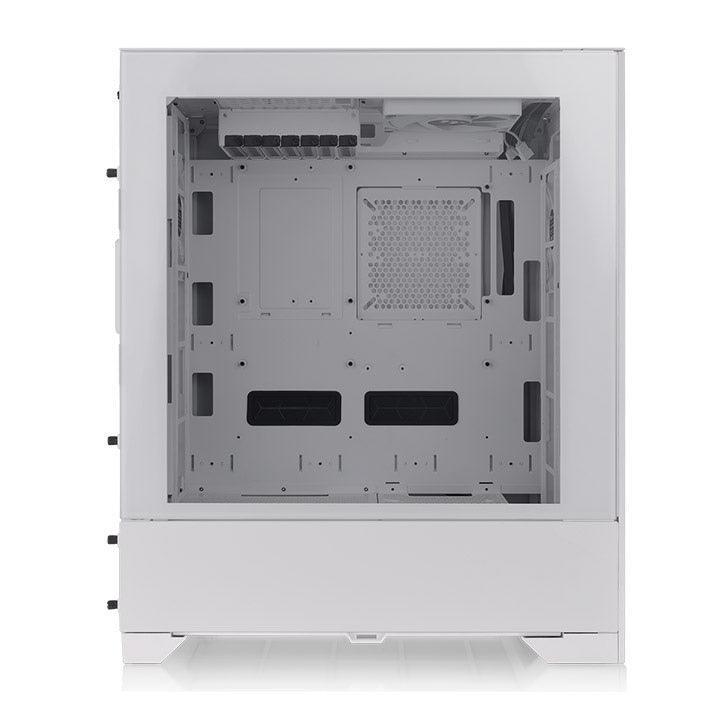

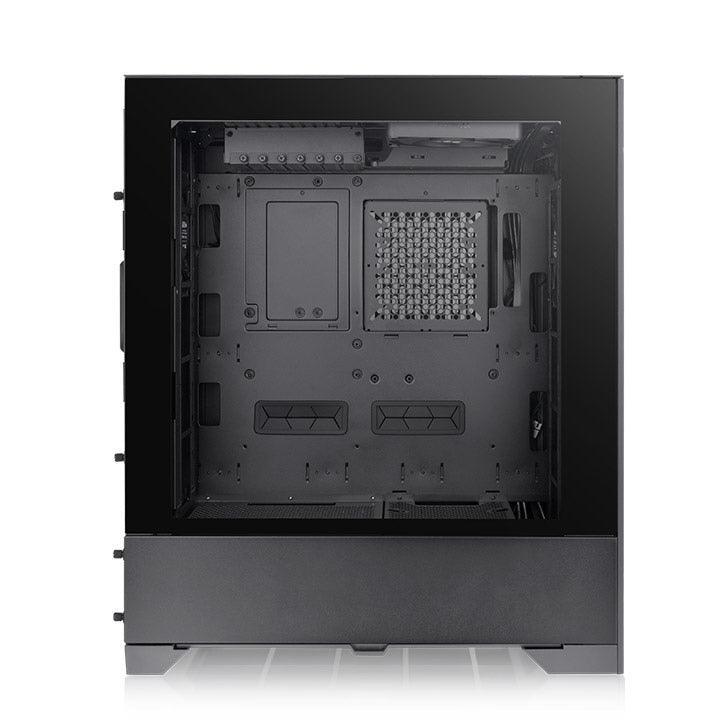

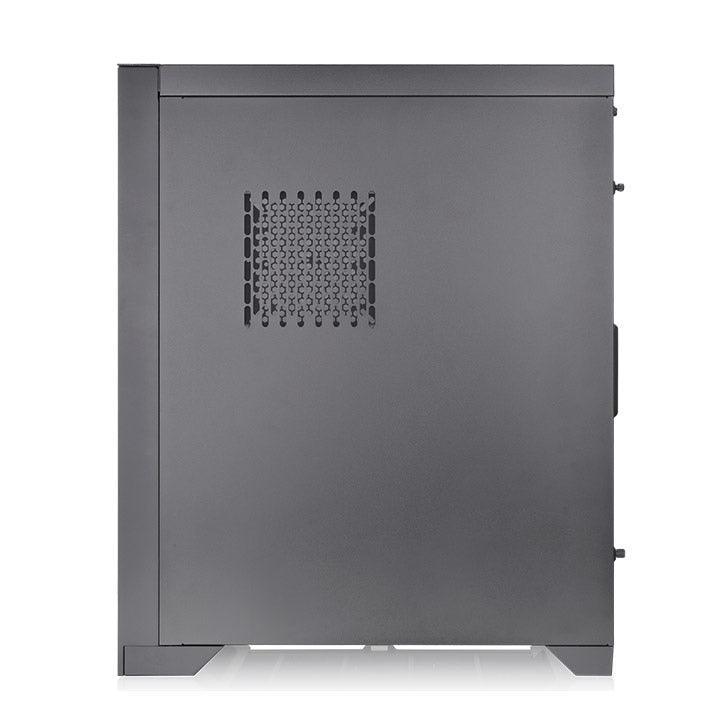

The case is available in different colors, allowing you to perfectly match it to your style and preferences.
Easy installation and maintenance
The case offers ample space for installing cooling components, including front and rear fan mounts and multiple fan vents. This greatly simplifies installation and maintenance, ensuring your system stays optimally cooled at all times.
| series | CTE |
|---|---|
| TYPE | Full Tower |
| DIMENSIONS (Height x Width x Depth) | 615 x 275 x 516 mm (24.21 x 10.83 x 20.31 inches) |
| NET WEIGHT | 15.3 kg / 33.73 lbs. |
| SIDE PANELS | 4mm tempered glass x 1 |
| MATERIAL | SPCC / ABS |
| Cooling | Front (intake): 140 x 140 x 25mm CT140 fan (1500rpm, 30.5dBA) x 1 Top(exhaust): 140 x 140 x 25mm CT140 fan (1500rpm, 30.5dBA) x 1 Rear (intake): 140 x 140 x 25mm CT140 fan (1500rpm, 30.5dBA) x 1 |
| EXTENSION | 7 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| POWER SUPPLY | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: 1 x 120mm, 1 x 140mm Rear: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Bottom: 1 x 120mm, 1 x 140mm PSU Cover: 1 x 120mm, 1 x 140mm |
| RADIATOR SUPPORT | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm Top: 1 x 120mm (AIO only) Rear: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm |
| POSSIBILITIES | CPU cooler max height: 195mm VGA max length: 385mm PSU max length: 180mm |
