Thermaltake
TR100 PC Power Supply
TR100 PC Power Supply
Stock Keeping Unit:CA-11A-00S1NN-00
In Stock
Delivery time: 1 - 3 working days (DE)
Availability for pickups could not be loaded

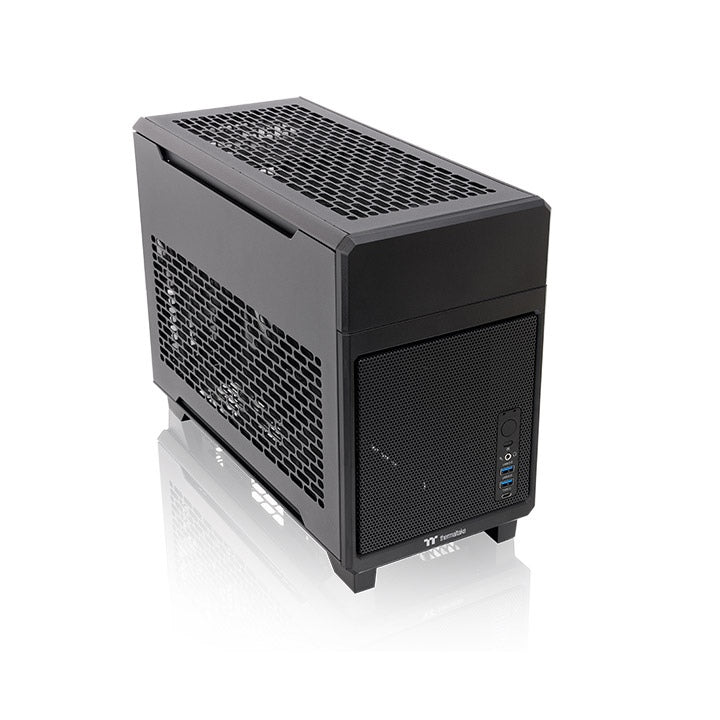

The TR100 is an 18.4-liter SFF case (Small Form Factor) that impresses with thoughtful details. Thanks to its dual-chamber design, the Mini-ITX motherboard and the SFX Power Supply are located in the right chamber, while the graphics card is connected to the motherboard in the left chamber via a supplied PCI-e 4.0 riser cable. Above the main components sits the cooling system: The TR100 offers space for a 280 mm AIO cooling that effectively dissipates heat from the CPU. All panels are well ventilated, removable, and ensure both optimal cooling performance and an easy PC building experience – even in a compact case.
Additionally, two separately available accessories are offered:
- 3.9-inch LCD screen kit, which can be installed on the front of the TR100.
- TT Traveling Suite Case, which securely protects the system and enables mobile gaming – anywhere and anytime.
Features
- 18.9-liter SFF case for maximum compactness
- Compatible with Mini-ITX motherboards and SFX/SFX-L Power Supplies
- Modular panels for easy installation
- Supports up to 280 mm radiator on the top

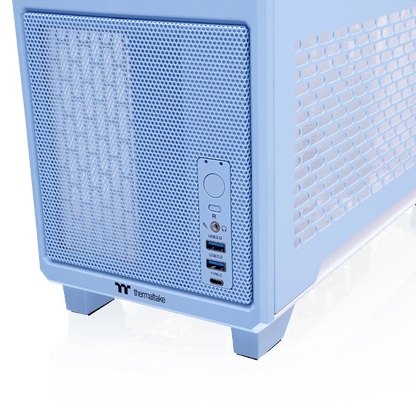

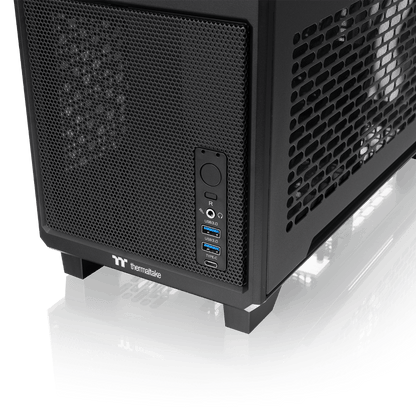

- I/O ports: 2x USB 3.0, 1x USB 3.2 Gen2 Type-C

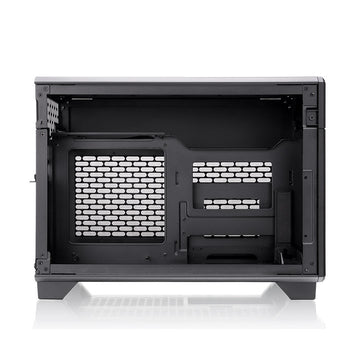

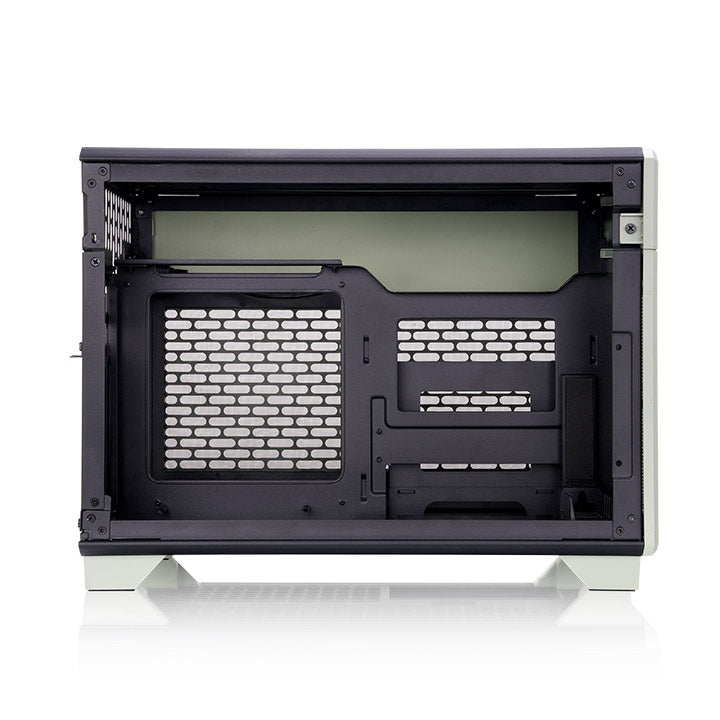

Removable panels
The modular design of the TR100 allows almost all panels to be removed. The side panels are magnetically attached, while the top and bottom panels are secured with spring-loaded screws.
VGA support

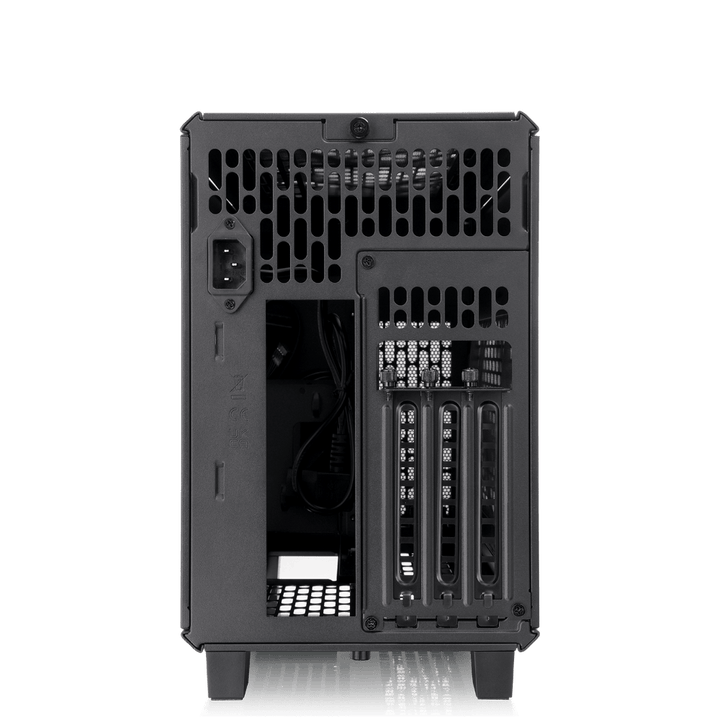

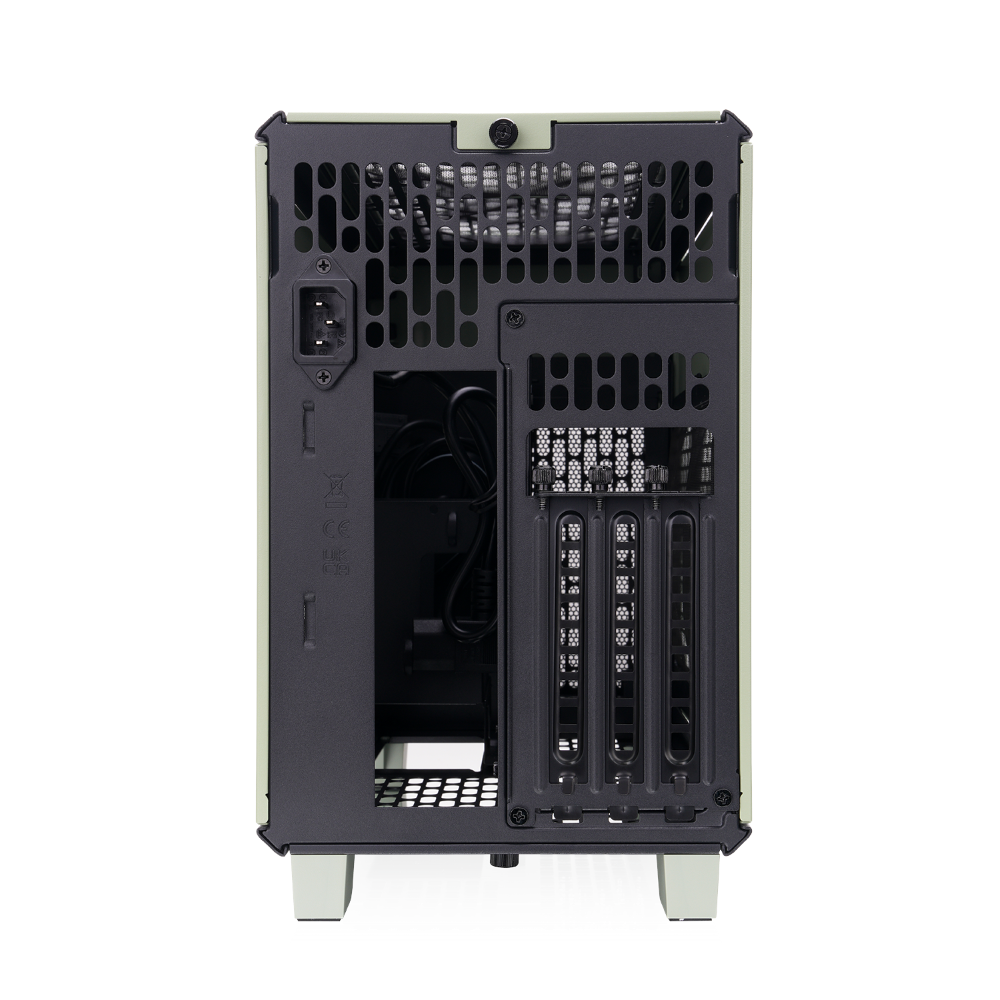

The TR100 supports graphics cards with a length of up to 360 mm and a height of 70 mm. Thanks to the removable PCI-e backplate and the integrated VGA bracket, even a large graphics card can be easily and securely installed in the portable gaming system.
Cooling
The TR100 offers space for a 240/280mm radiator (max. thickness: 53 mm) on the top of the case to cool the CPU. Alternatively, a Air coolers up to 68 mm height and two 120/140mm fans can be installed on the top.
Airflow recommendation
Tests with a 280mm AIO cooler on the top showed that the best cooling performance for CPU and GPU is achieved when the fans intake air from the top, while the Power Supply and graphics card draw fresh air from the side.
Dust protection
To protect the system from dust, the TR100 is equipped with removable dust filters equipped on all ventilation openings. These prevent the entry of small particles without affecting cooling performance.

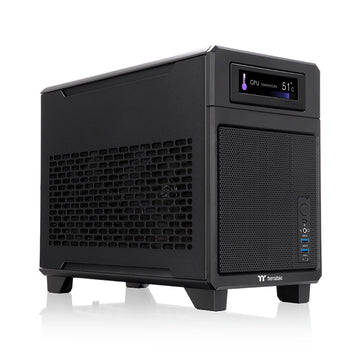

3.9-inch LCD screen kit
The separately available 3.9-inch TFT LCD screen kit can be easily replaced through the top front panel and provides access to various system information. With the TT RGB Plus software the displays can be customized individually. Additionally, the screen can interact with other products of the Ultra series.

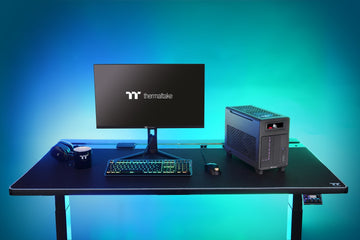

No more compromises: The TR100 offers premium performance in a compact format and is perfect for gamers seeking portability and flexibility.
| Series | TR100 |
|---|---|
| TYPE | Mini Case |
| DIMENSIONS (Height x Width x Depth) | 294 x 179 x 391 mm (11.58 x 7.05 x 15.39inch) |
| SIDE PANELS | Steel |
| MATERIAL | SPCC |
| EXPANSION | 3 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX) |
| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| Power Supply | SFX / SFX-L (optional) |
| FAN SUPPORT | Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm |
| RADIATOR SUPPORT | Top Side(AIO): 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm |
| OPTIONS | CPU cooler height limitation: 68mm VGA length limitation: 360mm VGA Width limitation: 70mm Power Supply length limitation: 130mm |
