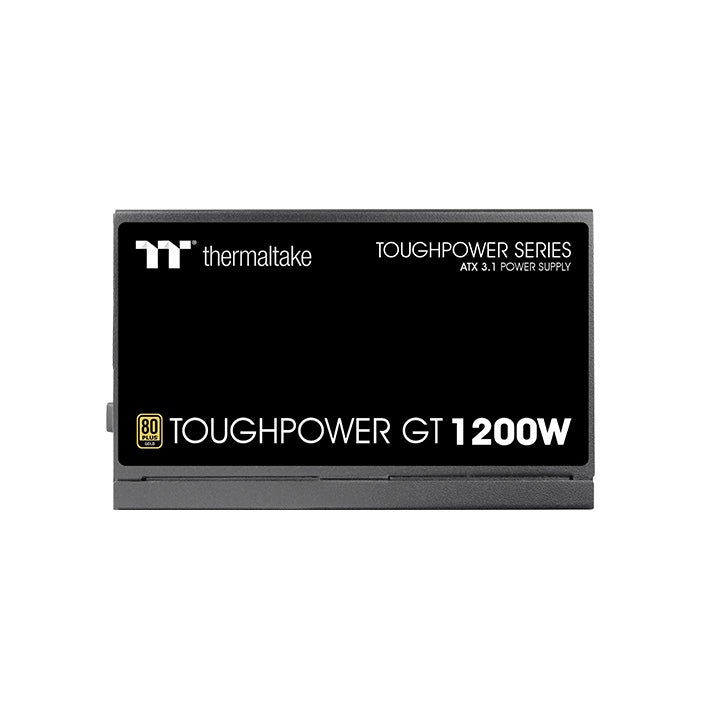

Toughpower GT 1200W Gold PC Power Supply
Toughpower GT 1200W Gold PC Power Supply
SKU:PS-TPT-1200FNFAGE-3
In stock
Lieferzeit: 1 - 3 Werktage (DE)
Couldn't load pickup availability
Toughpower GT Series
The fully modular Toughpower GT Series is designed for 80 PLUS Gold efficiency and is compatible with ATX 3.1 standards. The modular 2x PCIe 12V-2x6 (12+4-pin) interface enables efficient operation of PCIe 12+4-pin graphics cards. With a comprehensive 5-year warranty, the Toughpower GT Series meets the needs of budget-conscious users seeking a new Power Supply with reliable performance.
ATX 3.1 Ready
The Toughpower GT Series is fully compatible with ATX 3.1 specifications, supports up to 200% power excursions, achieves 60% efficiency at low load, and meets the required Power Supply timing standards.
PCIe Gen 5.1 Ready
The Toughpower GT Series is equipped with two PCIe 12V-2x6 connectors, providing strong and stable power so that the Power Supply can natively power next-generation GPUs.
The power indicated on the PCIe 12+4-pin cable connector corresponds to the recommended power (see Intel Design Guideline). The included PCIe Gen 5.1 (12+4-pin) cable connector of the Toughpower GT 1200W can deliver up to 600W for PCIe 12+4-pin graphics cards.
Ultra-quiet 120-mm hydraulic bearing fan with Smart Zero Fan
Equipped with a 120-mm hydraulic bearing fan that keeps friction at a very low level. Designed with our Smart Zero Fan to adjust fan speed and minimize unwanted noise.
Single +12V rail with high current capacity and high-end technology
The powerful single +12V rail can correctly deliver the power required for the best compatibility. The use of LLC and DC/DC circuits ensures very stable operation and improved voltage regulation.
Fully Modular Low-Profile Cables
Offers users a wide selection of cables and supplies the system with advantageous voltage. Low-profile cables make cable management easier, reduce clutter, and improve airflow inside the case.
Industrial-Grade Protection Built In
To protect the hardware, the Toughpower GT series is equipped with industrial-grade protections: OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection).
80 PLUS Gold Certified
The Toughpower GT series saves energy through its high energy efficiency of up to 90% and is 80 PLUS® Gold certified.
| watts | 1200W |
|---|---|
| Max. Output Capacity | 1200W |
| Dimension ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 10A Max. |
| Input Frequency Range | 50Hz-60Hz |
| Input Voltage | 100-240V～ |
| Operating Temperature | 0°C to + 40°C |
| Operating Humidity | 5% to 85%,non-condensing |
| Storage Temperature | -40°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| COOLINg | 12cm Hydraulic bearing fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK |
| PCI-E 6+2pin | 5 |
| PCIe 12+4pin | 1(600 Watt) |
| Protection | OVP/UVP/OCP/OPP/OTP/SCP |
