Toughpower PF1 ARGB 850 Watt Platinum PC Power Supply
Toughpower PF1 ARGB 850 Watt Platinum PC Power Supply
SKU:PS-TPD-0850F3FAPE-1
In stock
Delivery time: 1 - 3 business days (DE)
Availability for pickups could not be loaded
Toughpower PF1 ARGB 850W Platinum - TT Premium Edition
The Toughpower PF1 ARGB Platinum Series (850W/1050W/1200W) is equipped with high-quality components and advanced technology to combine aesthetics and performance. The patented 16.8 million color Riing Duo 14 RGB fan with 18 pre-installed LEDs provides brighter and richer lighting. The carefully designed ARGB side panels let the light shine through. The series supports synchronization with RGB motherboards from ASUS, GIGABYTE, MSI, and ASRock for countless lighting possibilities. With its nearly silent and reliable operation, the Toughpower PF1 ARGB Platinum meets and exceeds the demanding specifications of overclockers and PC enthusiasts.
Glow with the Flow

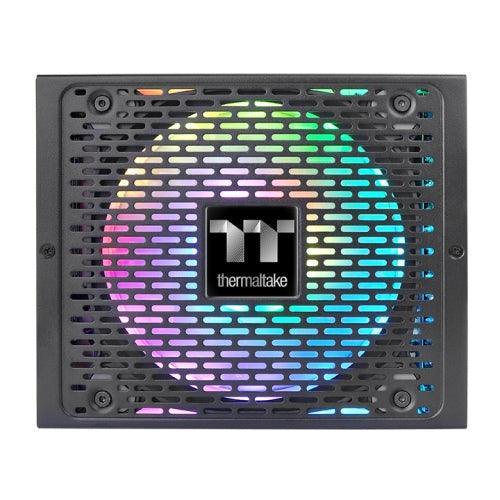

The built-in Riing Duo 14 RGB fan features two rings with 18 addressable LEDs, a large light cover, and uniform color and brightness to beautify your case with 16.8 million colors.
Taiwan Patent: 105218791
US Patent Applied
China Patent: ZL 201621469674.7
From every angle
Show off the glamorous lighting through the unique ARGB side panel design and give your PC build the wow factor.
Sync with Motherboard RGB Software
Designed for synchronization with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and AsRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the mentioned software without needing to install additional lighting software or controllers. For more information, please visit the official websites of ASUS, GIGABYTE, MSI, and AsRock.
Zero Cable Platform
No more cable clutter! The daughterboards are directly soldered to the motherboard to ensure better heat dissipation and impressive output performance.
Quiet Smart Zero Fan
With the Smart Zero Fan, which activates when the power supply load exceeds 40%, unwanted noise is minimized. A user-friendly switch is located on the back for those who prefer the fan to run continuously.
<30 mV Low ripple noise
All ripple noise stays below 30mV on +12V, +5V, or +3.3V from 0% to 100% load to ensure excellent performance and reliable operation.
Strict voltage regulation ＜±2%
Voltage regulation, stricter than Intel’s standard ±5% for main rails and ±10% for -12V, is set to no more than ±2% for main rails to achieve the highest performance.
100% high-quality Japanese 105°C/221°F capacitors
High-quality Japanese capacitors rated at 105 °C (221 °F) enhance durability and provide impressive stability.
Fully modular, flat black low-profile cables
The series offers users a wide selection of cables and supplies the system with optimal voltage. The flat black low-profile cables make cable management easier, reduce clutter, and increase airflow inside the case.
Single +12V rail for high current output
The powerful single +12V rail ensures stable and reliable power delivery to other PC components.
80 PLUS Platinum certified and Intel C6/C7 States Ready
Saves energy with its high energy efficiency of up to 92% and is certified 80 PLUS® Platinum. The series is optimized to work with all generations of Intel processors to achieve maximum energy savings.
Specification
| P/N | PS-TPD-0850F3FAPE-1 |
|---|---|
| WATTS | 850W |
| RGB FAN | Yes |
| MODEL | TPD-850AH3FCP-A |
| MAX. OUTPUT CAPACITY | 850W |
| PEAK OUTPUT CAPACITY | 1020W |
| COLOR | Black |
| DIMENSIONS (W / H / D) | 150mm(W) x 86mm(H) x 180mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-500 msec |
| HOLD-UP TIME | > 16msec at 100% of full load |
| INPUT CURRENT | 12A |
| INPUT FREQUENCY RANGE | 50Hz - 60Hz |
| INPUT VOLTAGE | 100V – 240V~ |
| OPERATING TEMPERATURE | 0°C to +50°C |
| OPERATING HUMIDITY | 20% to 90%, non-condensing |
| STORAGE TEMPERATURE | -20°C to +70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING | 14cm hydraulic bearing fan |
| EFFICIENCY | Meets 80 PLUS® Platinum at 115Vac input. |
| MTBF | 120,000 hrs minimum |
| SAFETY APPROVAL | CE/cTUVus/TÜV/FCC/BSMI/CCC/EAC/S-Mark |
| PCI-E 6+2PIN | 6 |
| PROTECTION | OCP, OVP, UVP, OPP, SCP, OTP |
