Toughpower PF3 850W Platinum PC Power Supply
Toughpower PF3 850W Platinum PC Power Supply
SKU:PS-TPD-0850FNFAPE-3
In stock
Lieferzeit: 1 - 3 Werktage (DE)
Couldn't load pickup availability
The Thermaltake Toughpower PF3 850 Watt is a state-of-the-art Power Supply designed for next-generation high-performance hardware. With an 80 PLUS Platinum certification, this Power Supply guarantees not only outstanding energy efficiency but also remarkable stability and reliability. It meets Intel's strict ATX 3.0 specifications, making it optimally equipped to handle even the most demanding system requirements.

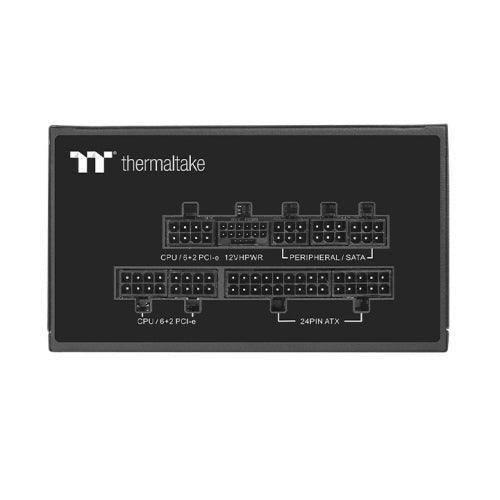

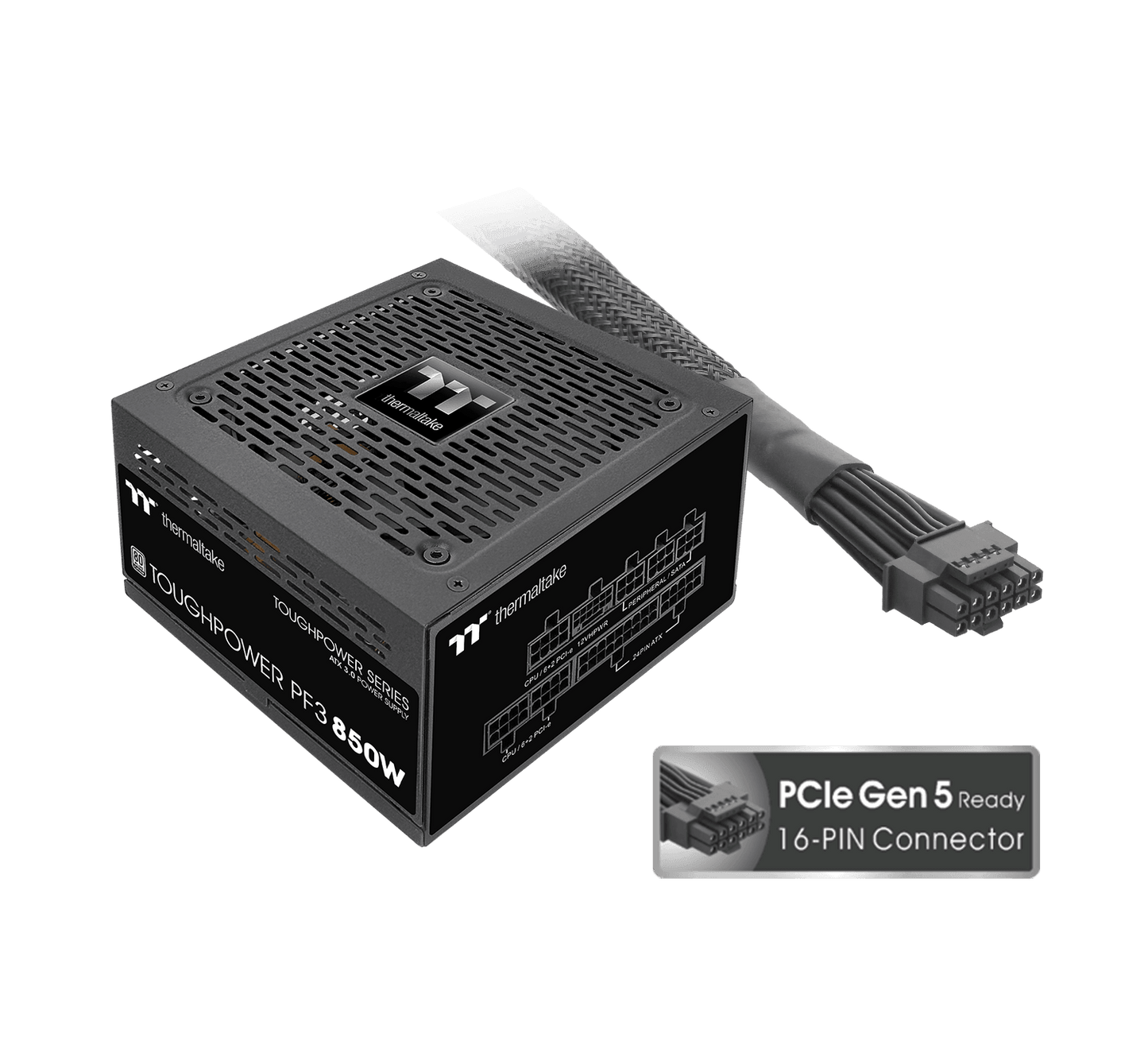

The Toughpower PF3 series is equipped with a native PCIe Gen 5 connector and a new 12VHPWR cable, offering maximum potential for the latest graphics cards from NVIDIA and AMD. This 16-pin connector allows for up to 600 W power for PCIe 5.0 graphics cards, giving you the flexibility to equip your gaming or workstation with the latest technology. The recommended wattage is an estimate of system power requirements and may vary depending on specific components. Therefore, it is advisable to follow the recommended power requirements from GPU manufacturers before using the 12VHPWR cable.

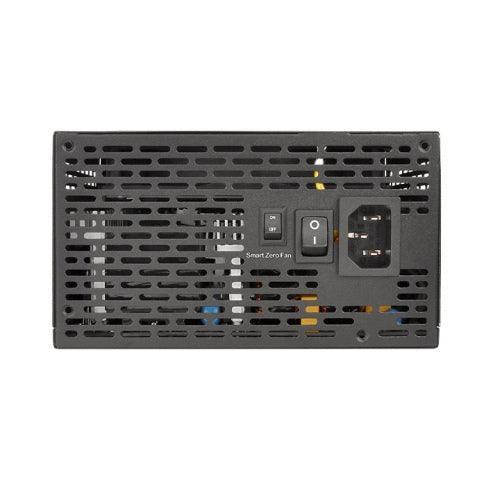

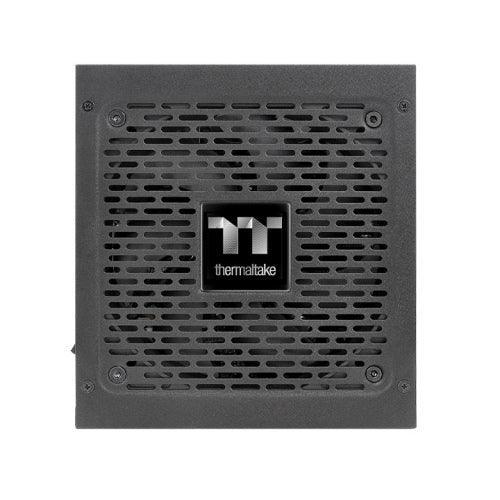

Another outstanding feature of the Toughpower PF3 series is its compact design with a depth of only 140 mm, providing plenty of space for efficient cable management. The modular low-profile cables help reduce cable clutter and improve airflow inside the case, enhancing the overall system performance. This Power Supply is also equipped with a 120 mm fluid dynamic bearing fan that ensures excellent cooling with minimal noise, thanks to the Smart Zero Fan technology, which adjusts the fan speed as needed.
The use of high-quality Japanese 105°C electrolytic capacitors ensures a long lifespan and maximum stability of the Power Supply. With a single +12V rail and high-class technologies like LLC and DC/DC circuits, the Toughpower PF3 is not only extremely powerful but also offers improved voltage regulation for stable operation.
The Toughpower PF3 850 Watt is the ideal choice for tech enthusiasts and gamers who don’t want to compromise. Whether for intense gaming or graphics-heavy applications – with this Power Supply, you’re ready for anything. Full compatibility with Intel ATX 3.0 standards, combined with powerful performance and efficiency, makes the Toughpower PF3 an excellent choice for your system. Choose quality and performance – opt for the Thermaltake Toughpower PF3 850 Watt and experience the next generation of power delivery.
| watts | 850W |
|---|---|
| Model | TPD-850AH2FKP |
| Max. Output Capacity | 850W |
| COLOR | Black |

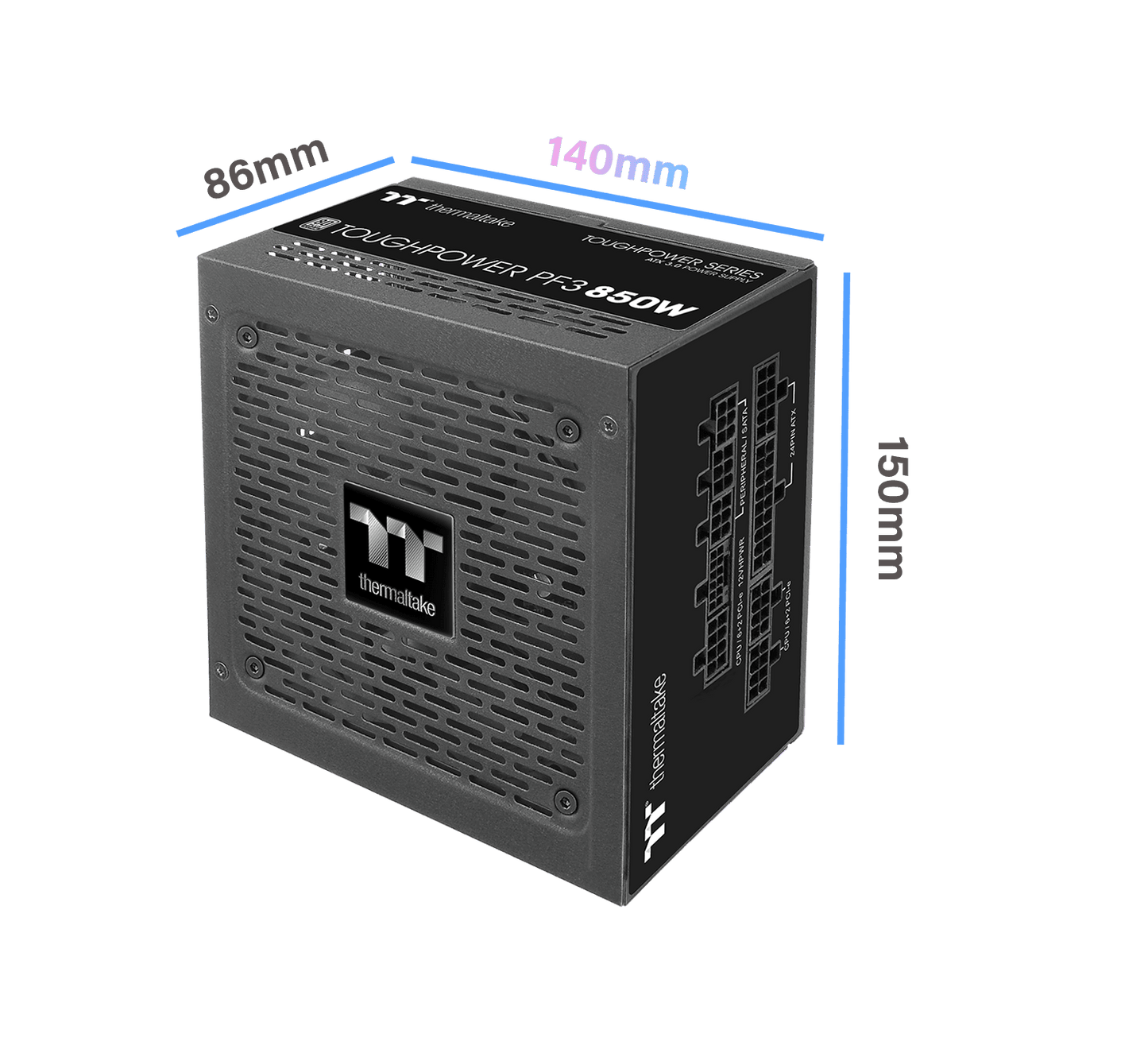

| Dimension (W / H / D) | 140mm(W)x86mm(H)x150mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec |
| Input Current | 10A |
| Input Frequency Range | 50/60Hz |
| Input Voltage | 100 - 240Vac |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 5% to 85%, non-condensing |
| Storage Temperature | -40°C to +70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| COOLING | 12cm FDB Fan |
| Efficiency | Meets 80 PLUS® Platinum at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |
| PCI-E 6+2pin | 4 |
| PCIe 12+4pin | 1 |
