Thermaltake LCGS
TR2 S 650W PC Power Supply
TR2 S 650W PC Power Supply
SKU:PS-TRS-0650NNSAWE-H
In stock
Lieferzeit: 1 - 3 Werktage (DE)
Couldn't load pickup availability
The TR2 S 650W is an ATX Power Supply designed to provide reliable power for modern desktop and gaming systems. With a total output of 650 W, it provides sufficient energy for current PC hardware and is suitable for systems with powerful processors and graphics cards. The combination of stable power delivery, efficient design, and durable components makes this Power Supply a solid foundation for PC builds that require consistent and reliable power.
Efficient power supply with 80 PLUS 230V Standard
The Power Supply is certified according to the 80 PLUS 230V Standard and achieves an efficiency of up to 82%, reducing energy losses and enabling a stable power supply. Higher efficiency also helps ensure that less energy is converted into heat, allowing the Power Supply to operate reliably even during extended use.
Single +12 V rail for stable power supply
The TR2 S MA 750W uses a single +12 V rail, providing a consistent power supply for key components such as the processor and graphics card. This allows the available power to be distributed efficiently, supporting stable system performance even under load.

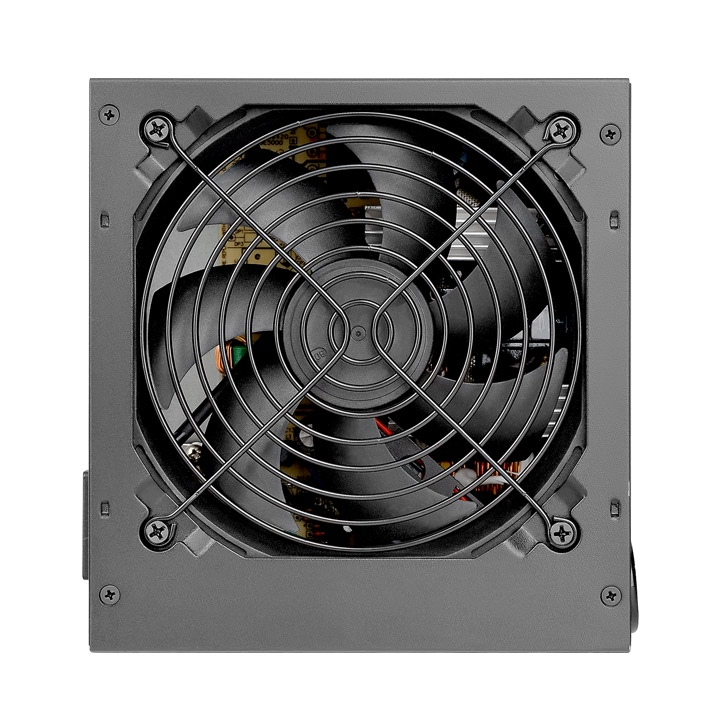

Reliable cooling with a 120 mm fan
Cooling is provided by a 120 mm fan, which generates a continuous airflow through the Power Supply and keeps the internal components at a stable operating temperature. This active cooling supports reliable operation of the Power Supply and contributes to the system's long-term stability.

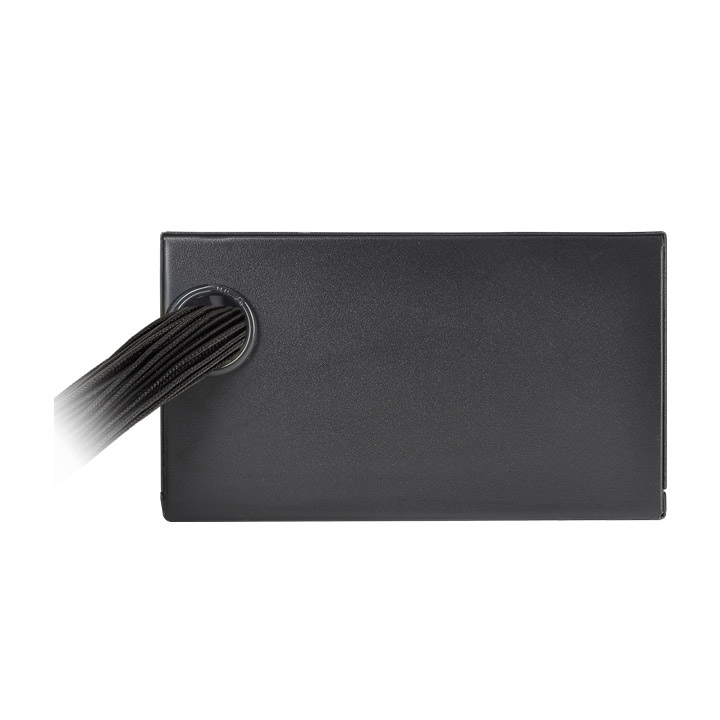

Flat cables for easy cable management
The Power Supply is equipped with flat black cables that make cable management inside the case easier. This allows the interior of the system to remain organized while also reducing the impact on airflow inside the case.
Industrial-grade integrated protection
The TR2 S MA 750W features industrial-grade integrated protection, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection). These protection mechanisms help reliably protect the Power Supply and connected hardware from electrical faults and support stable system operation.
| watts | 650W |
|---|---|
| RGB Fan | No |
| Form Factor | ATX |
| Model | TRS-650AH2NXW-M |
| Max. Output Capacity | 650W |
| COLOR | Black |
| Dimension ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | T5 > 16msec at 50% load T6 > 1msec at 75% load |
| Input Current | 10A Max. |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 200-240V～ |
| Operating Temperature | 0°C to + 25°C |
| Operating Humidity | 10% to 90%,non-condensing |
| Storage Temperature | -40°C to + 70°C |
| Storage Humidity | 10% to 95%, non-condensing |
| COOLINg | 12cm Hydraulic Bearing Fan |
| Efficiency | 80 PLUS® 230V EU Internal Certified |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE(UKCA)/CB/TUV/LVD |
| PCI-E 6+2pin | 2 |
| Protection | OVP/OPP/UVP/SCP |
