Thermaltake LCGS
View 290 TG ARGB PC Case
View 290 TG ARGB PC Case
SKU:CA-11G-00M1WN-00
In stock
Delivery time: 1 - 3 business days (DE)
Availability for pickups could not be loaded
The View 290 TG ARGB combines modern functionality with a distinctly clear design concept. Designed for users who demand maximum visibility of their components, high cooling performance, and modern connectivity options, this case is equally aimed at discerning gamers, PC enthusiasts, and system builders who value hidden cabling and ARGB effects.
Generous glass surfaces and clear presentation
The striking design combines a curved front made of 4 mm tempered glass with a side tempered glass panel. This construction puts the installed components in the spotlight and allows an unobstructed view of cooling solutions, RGB elements, and hardware configuration. The glass panels are precisely manufactured and provide a smooth, modern case appearance without visible interruptions.
ARGB fans integrated as standard

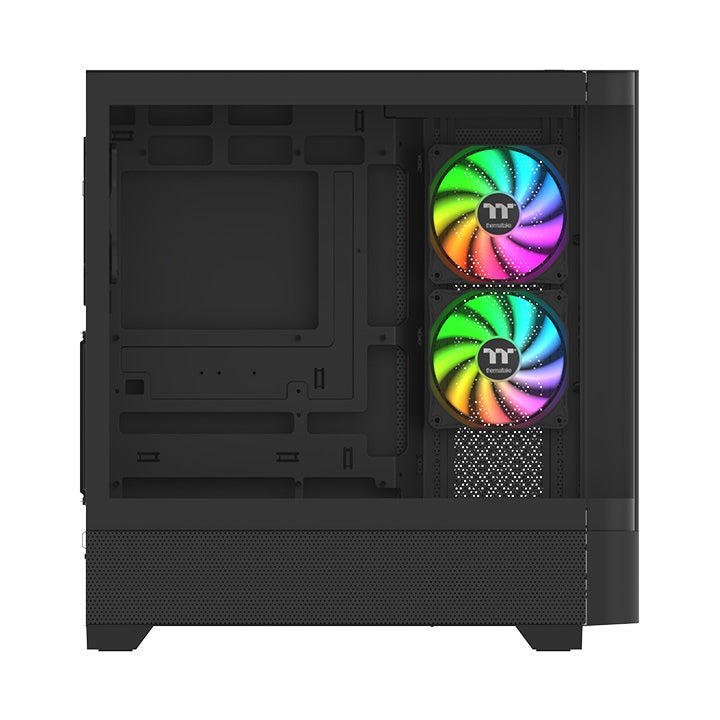

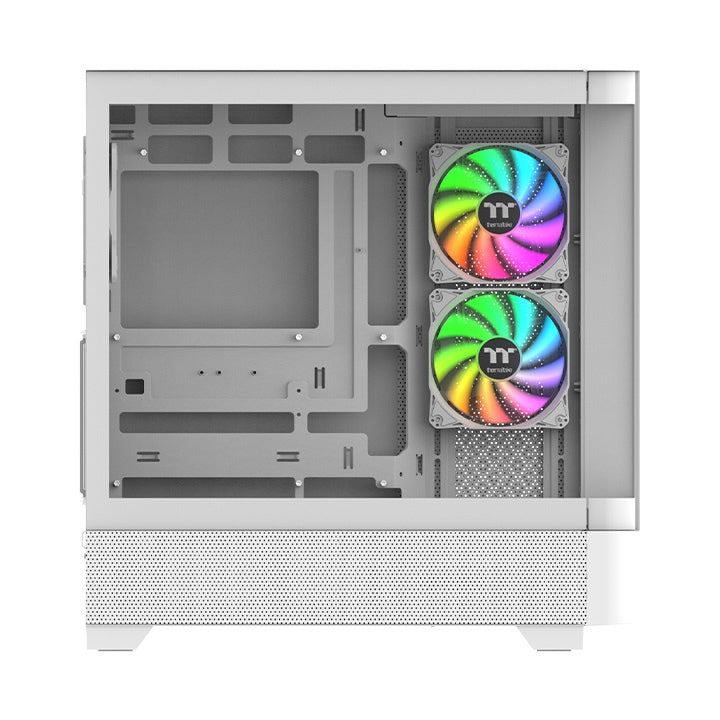

For active cooling, three hydraulically bearing 120 mm ARGB Lite fans are pre-installed – two at the front for fresh air intake and one at the rear for exhaust. These fans are compatible with 5V ARGB headers and RGB control systems from ASUS, MSI, Gigabyte, and ASRock, allowing direct synchronization via the motherboard. The even lighting creates a harmonious light atmosphere throughout the case. For upgraded builds, there is space for up to nine 120 mm fans, including options for larger radiators – up to 360 mm on the top panel.
Interior optimized for high-performance components

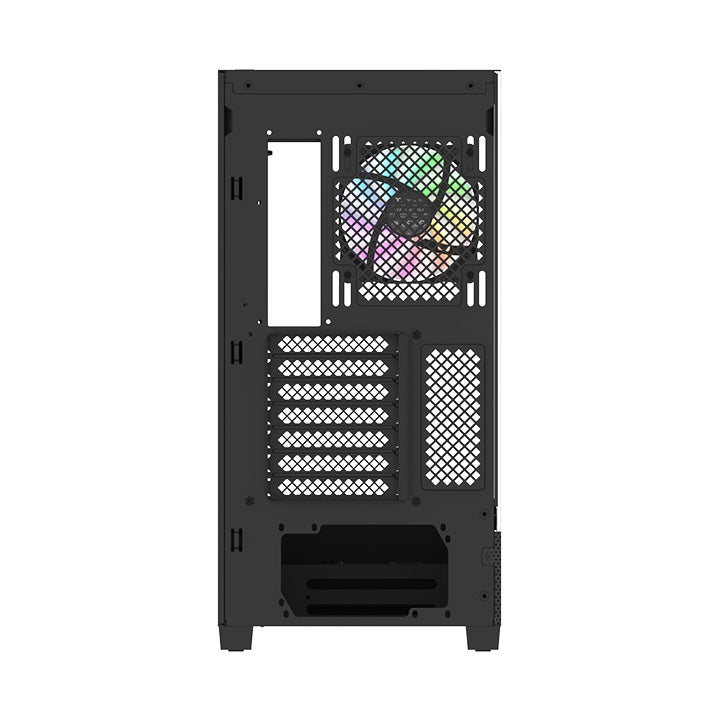

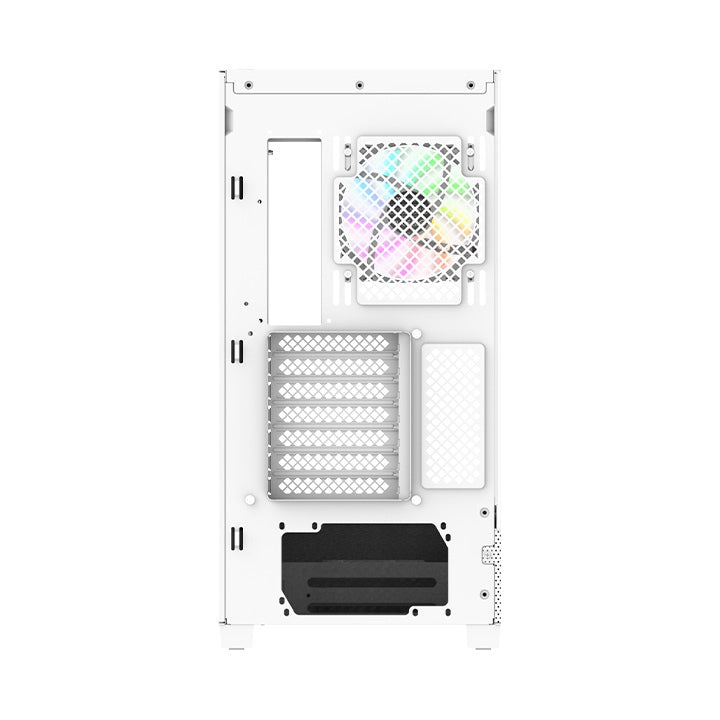

The View 290 TG ARGB supports motherboards up to ATX size and offers space for graphics cards up to 450 mm in length, CPU coolers up to 180 mm in height, and power supplies up to 200 mm in length. The rotatable PCIe slots allow for both classic horizontal and vertical GPU mounting. For the latter, there are separate mounting points for a 90° riser cable. The fully covered power supply chamber visually separates the lower area and makes cable management easier for a tidy build.
Compatibility with hidden-connector motherboards
A key feature of the View 290 TG ARGB is support for so-called Hidden-Connector motherboards — including the ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth series. These motherboards relocate their power and data connectors to the back, eliminating visible cable connections. The chassis is designed to easily accommodate these boards and allows cable management entirely behind the tray. The result is an especially clean interior layout with unobstructed airflow and a clear look.
Dust Protection and I/O Features

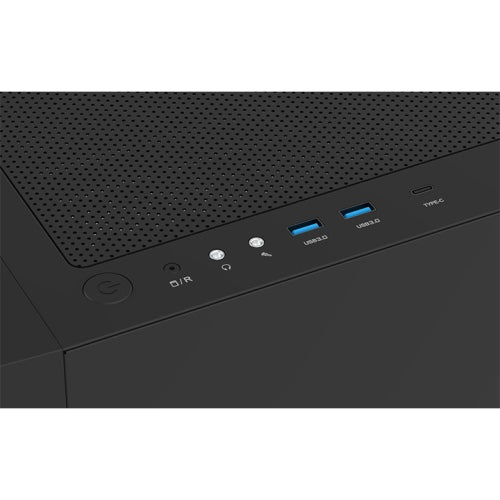

Removable dust filters are located at all important intake and exhaust openings, protecting the system from dirt over the long term. These filters can be cleaned without tools and help ensure that fans and radiators maintain their full performance permanently. For easy everyday use, the I/O panel is equipped with two USB 3.0 ports, one USB 3.2 Gen 2 Type-C port, and HD audio jacks — all conveniently accessible at the top of the case.
Style Variants and Expansion Options
The case is color-neutral and ideal for builds focused on RGB or minimalist systems. Thanks to its clean lines, continuous glass surfaces, and optional vertical GPU mounting, the system looks tidy and technically impressive in any configuration. With generous space, high compatibility, and hidden cable management, the View 290 TG ARGB provides a future-proof foundation for demanding PC builds.
| Series | View |
|---|---|
| TYPE | Mid Tower |
| DIMENSIONS (Height x Width x Depth) | 497 x 242 x 477mm (19.57 x 9.53 x 18.78 inch) |
| SIDE PANELS | 4mm Curved TG Front Panel x1 / 3mm Tempered Glass x 1 |
| MATERIAL | SPCC |
| COOLING | Right (intake): 120 x 120 x 25 mm ARGB Lite Reverse fan (1000±200rpm, 21.9 dBA) x 2 Rear (exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000±200rpm, 22.3 dBA) x 1 |
| DRIVES | 2 x 3.5” or 2 x 2.5” |
| EXPANSION | 7 (rotatable patented design) |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Hidden-Connector Motherboard | 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O PORTS | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| POWER SUPPLY | Standard PS2 PSU (optional) |
| FAN SUPPORT | Top: 3 x 120mm 2 x 140mm Right: 2 x 120mm Rear: 1 x 120mm 1 x 140mm Power Cover: 3 x 120mm |
| RADIATOR SUPPORT | Top Side (AIO): 1 x 360 mm, 1 x 240 mm, 1 x 120 mm 1 x 280mm, 1 x 140mm Right Side (AIO): 1 x 240mm, 1 x 120mm |
| OPTIONS | CPU cooler height limit: 180 mm VGA length limit: 450mm PSU length limit: 200mm |
