Thermaltake LCGS
View 380 XL WS ARGB PC Case
View 380 XL WS ARGB PC Case
SKU:CA-11E-00M1WN-WS
In stock
Delivery time: 1 - 3 business days (DE)
Availability for pickups could not be loaded
The View 380 XL WS ARGB combines modern PC design with an elegant wood accent and a clearly structured interior architecture. The case offers generous space for high-performance hardware, a well-thought-out cooling system, and compatibility with hidden-connector motherboards. It is aimed at users who prefer a tidy, technically sophisticated, and visually coherent system.
Design and Construction

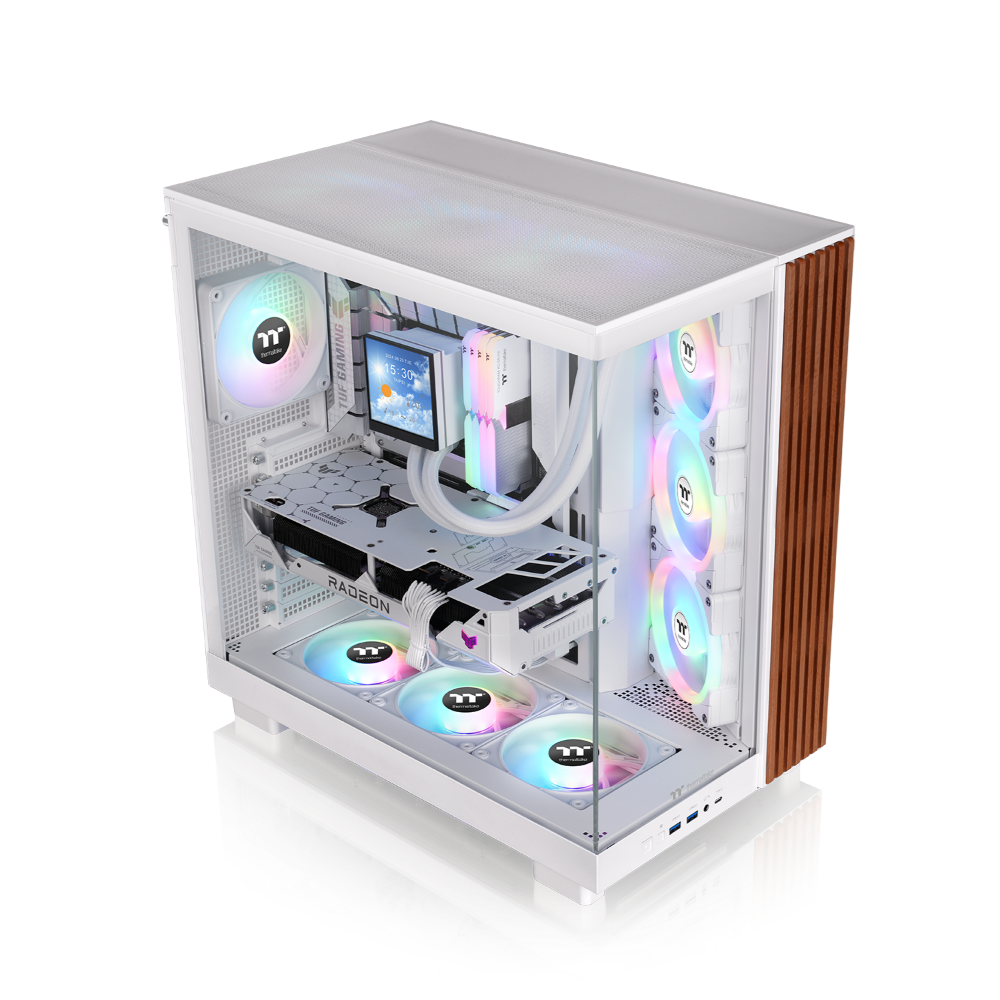

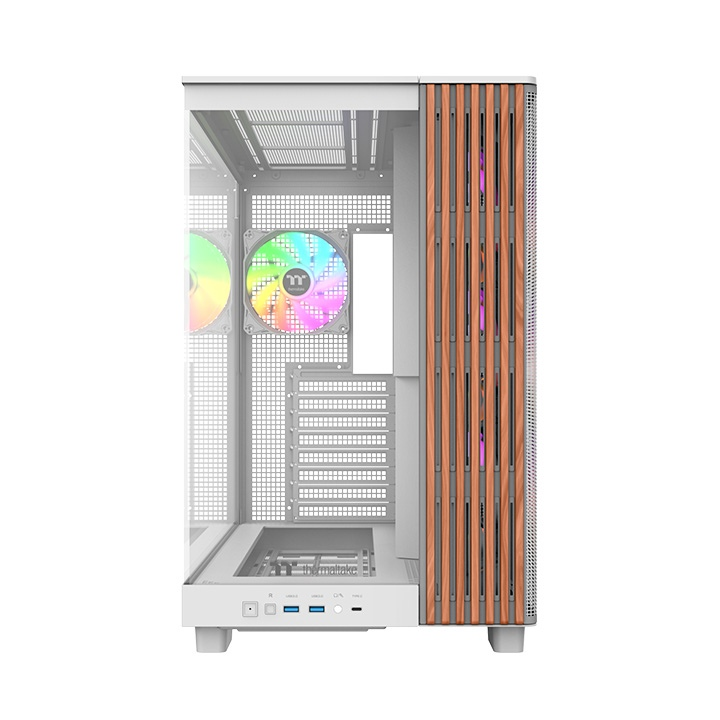

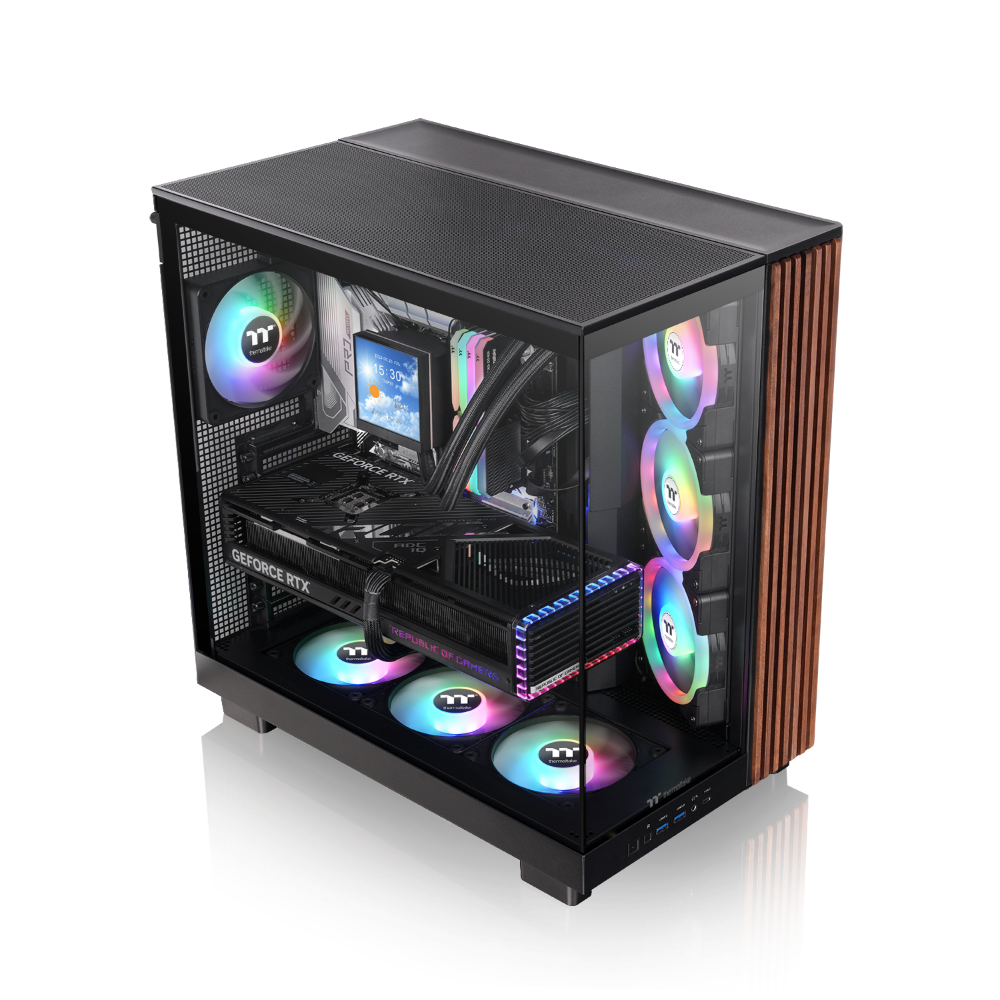

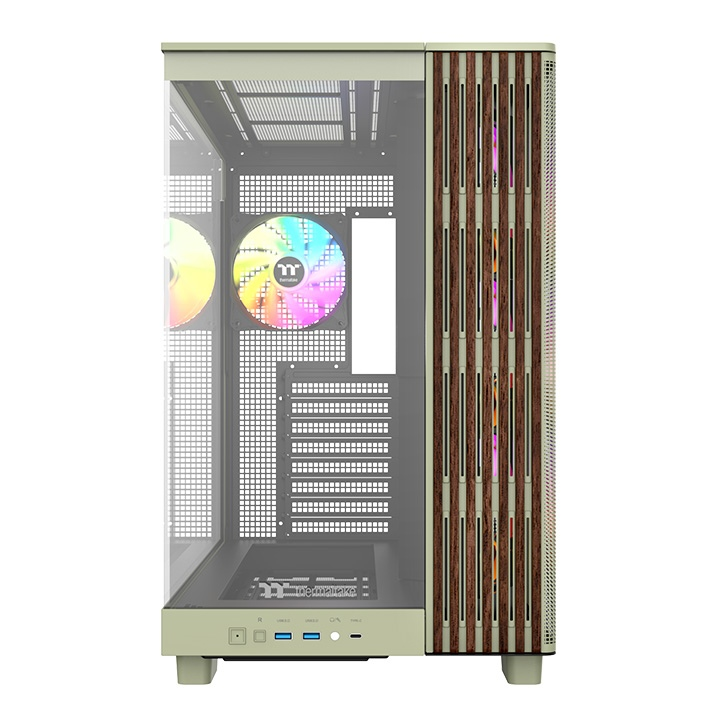

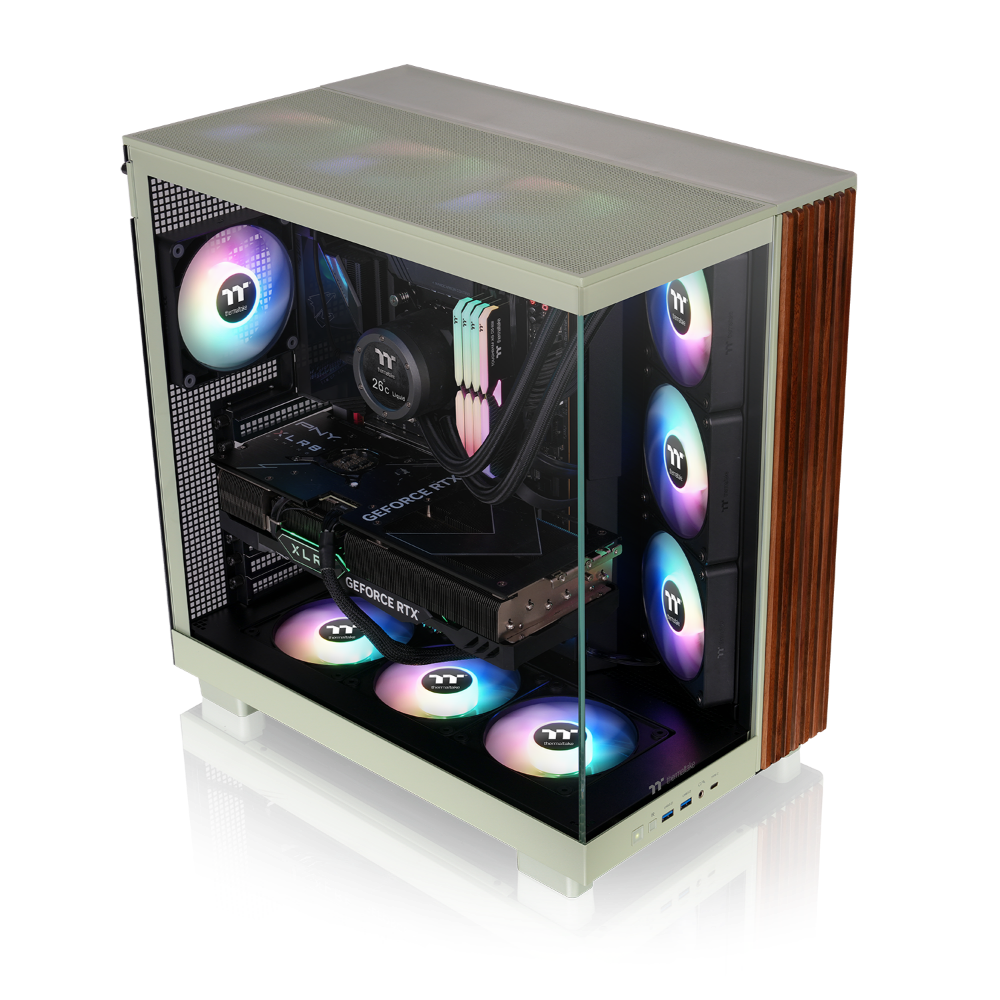

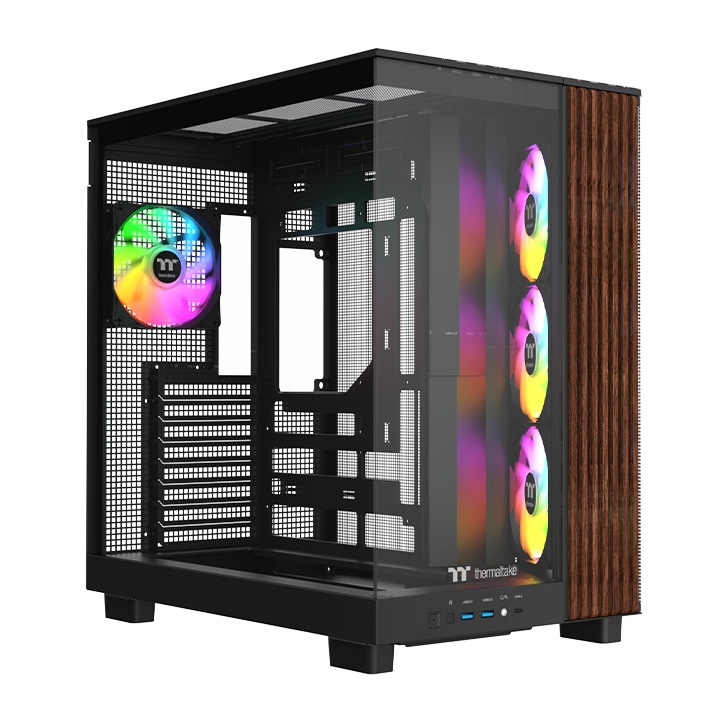

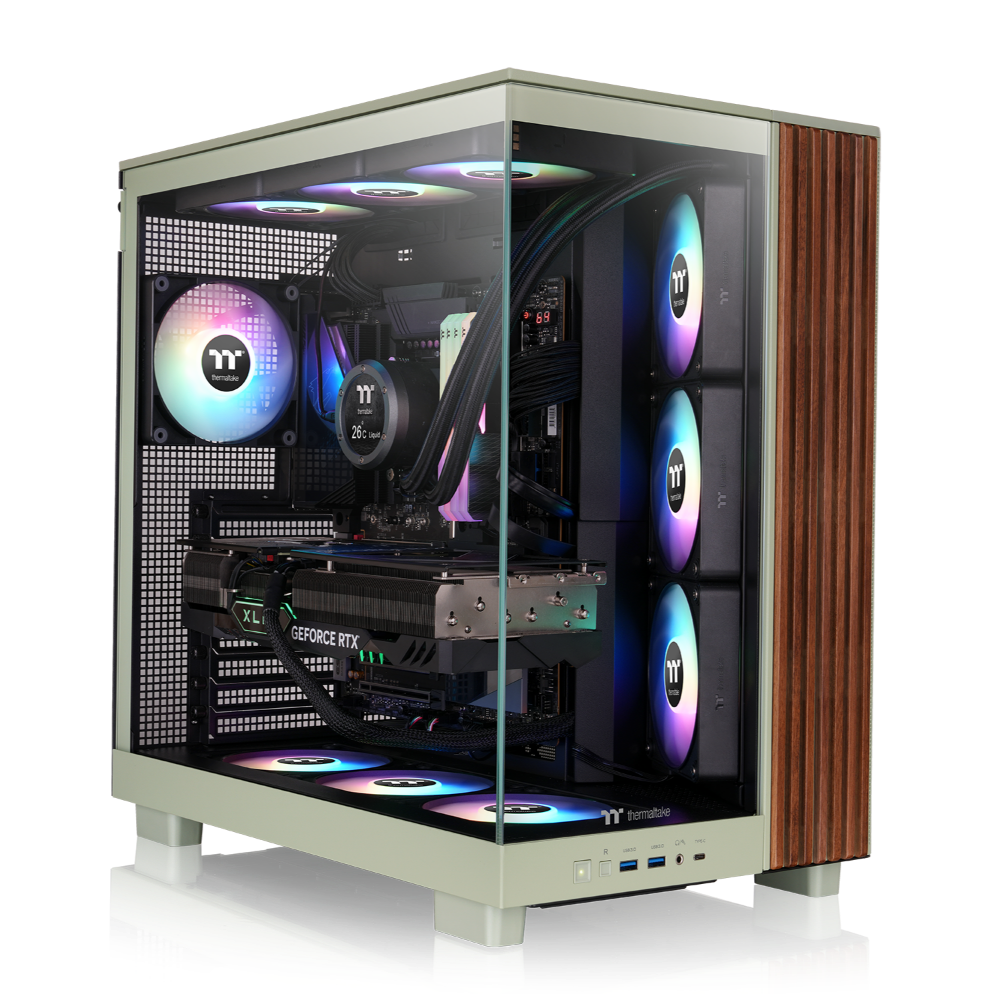

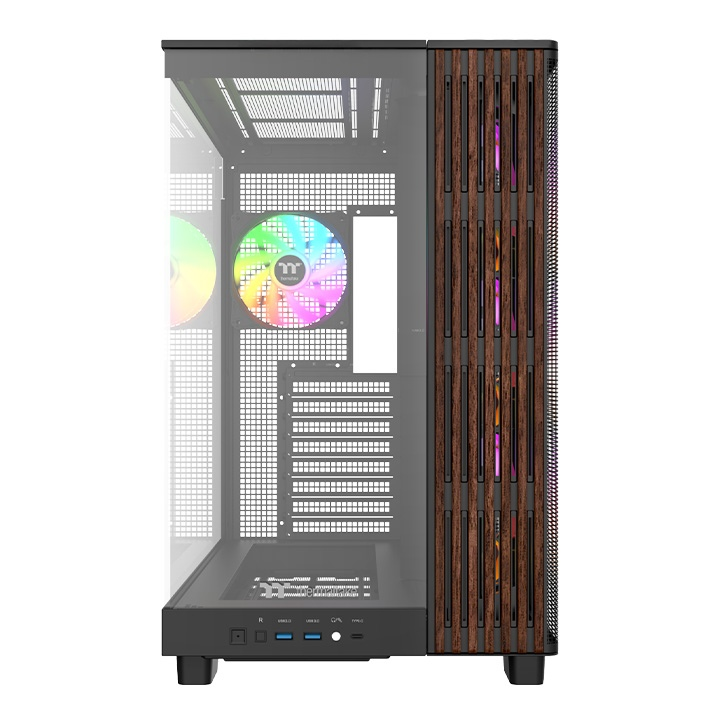

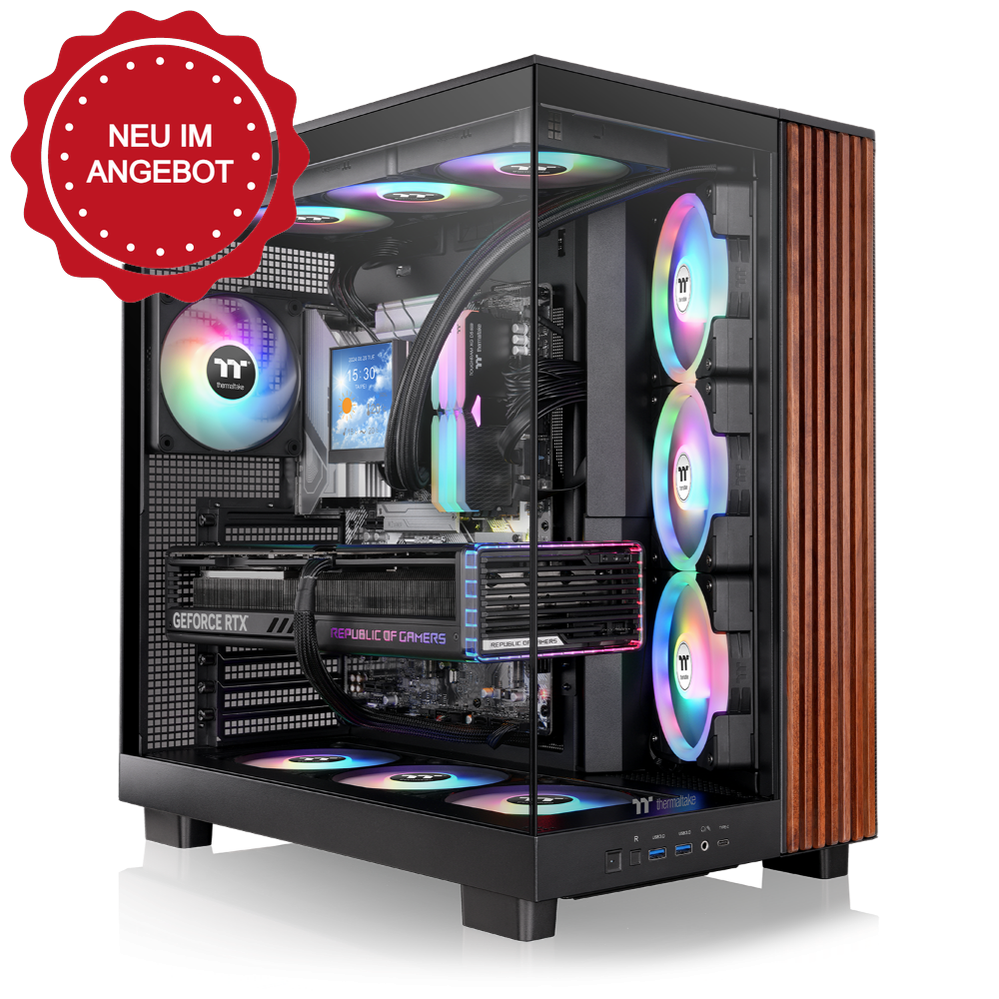

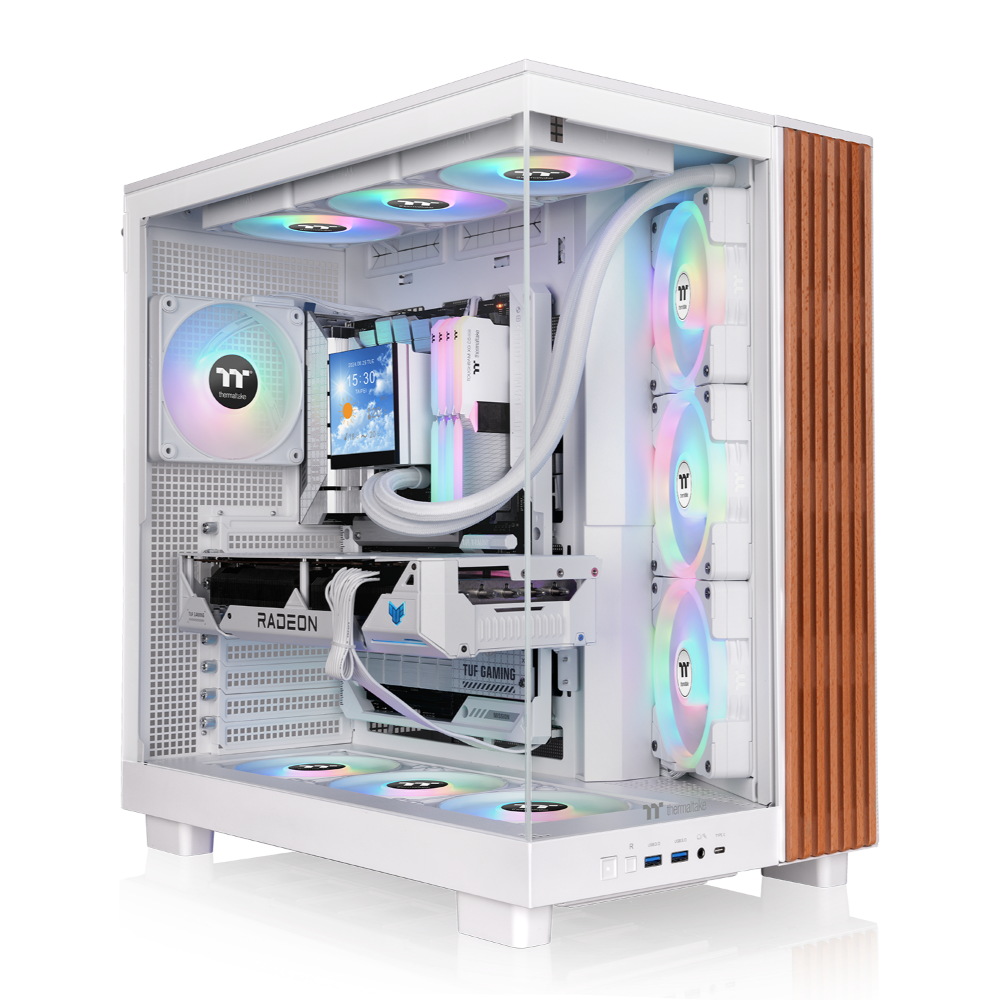

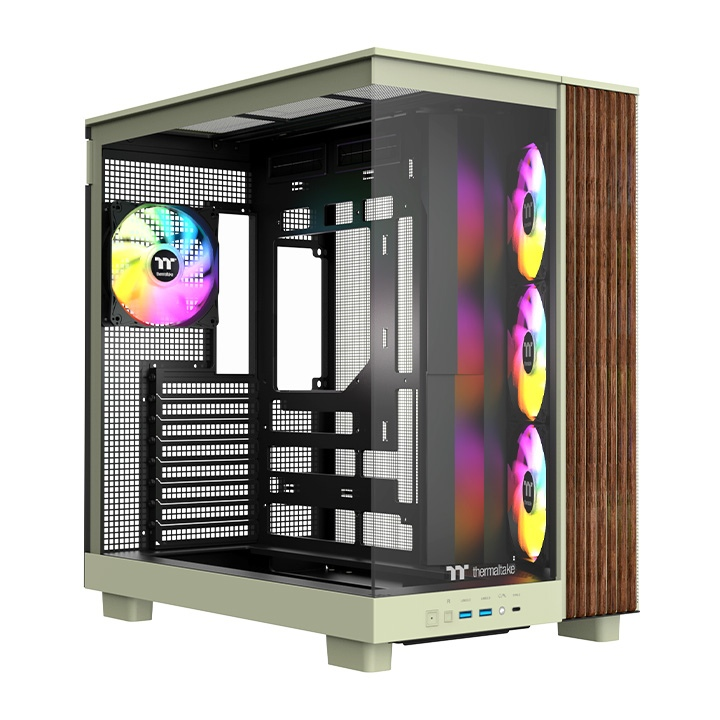

The combination of wooden elements on the front and two large panels of tempered glass creates a modern look that harmoniously blends technology and interior design. The clean lines and high-quality craftsmanship make the case an ideal foundation for builds where performance and style are equally important.
Dual-Chamber Layout

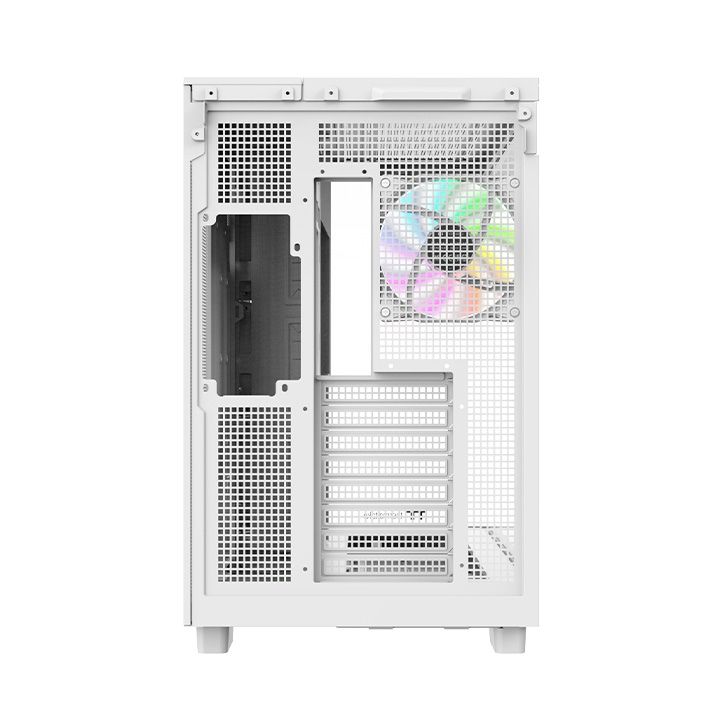

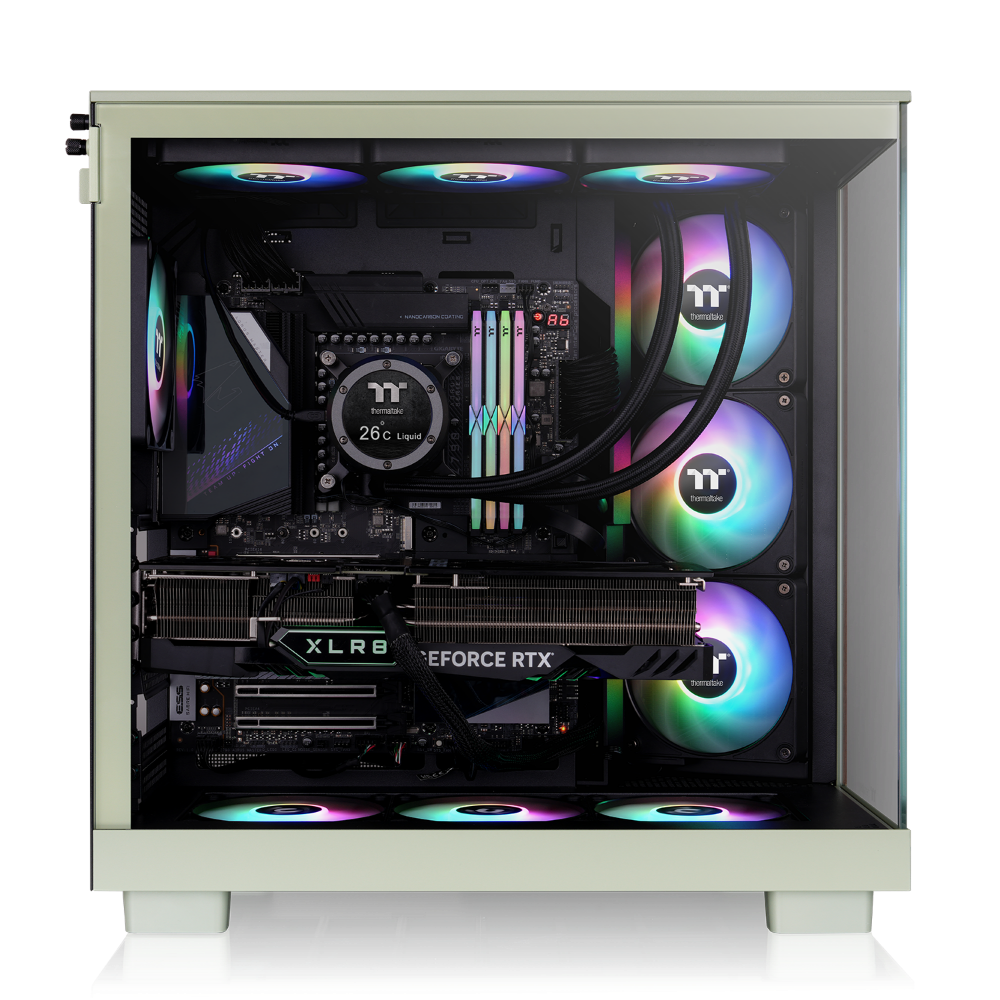

The dual-chamber design separates main components like the motherboard and graphics card from the Power Supply and drives. This structure optimizes airflow, improves thermal efficiency, and simplifies cable management, as cables and power cords are routed invisibly in the lower chamber.
Hidden Connector Support

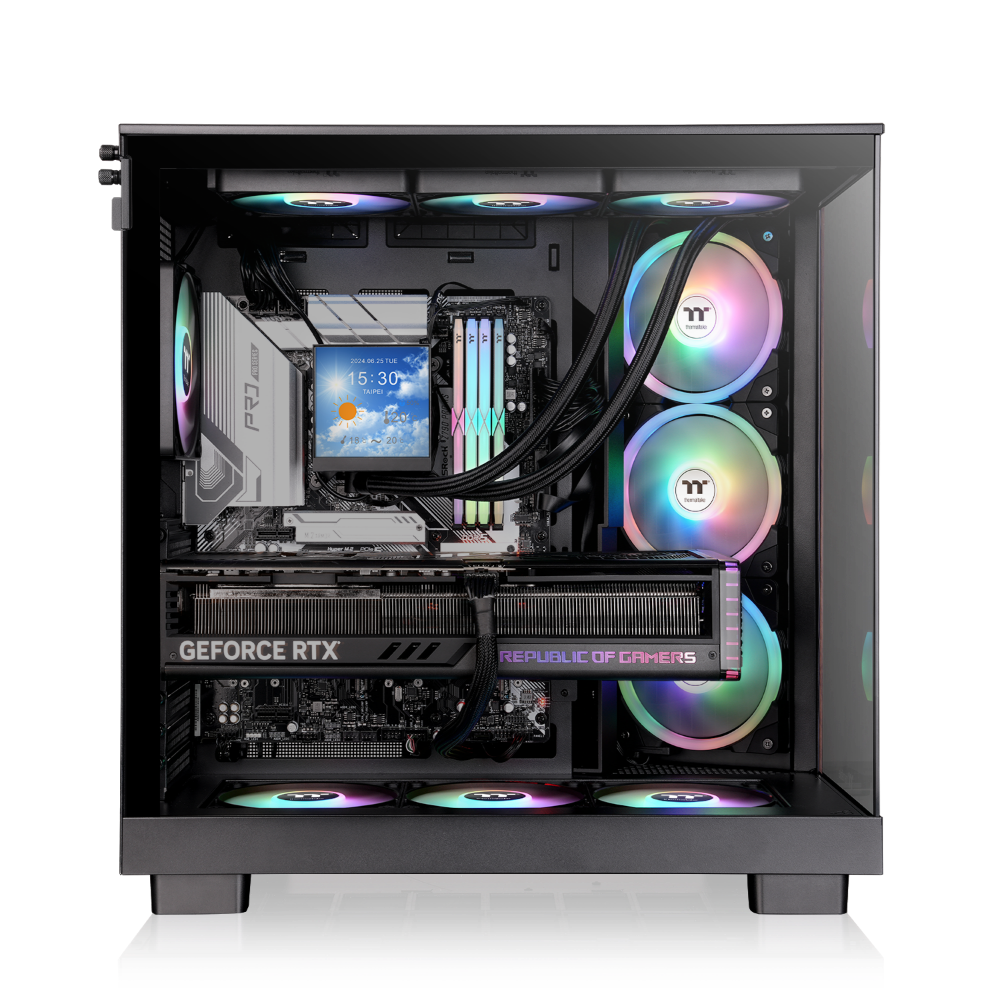

The case is compatible with ASUS BTF, MSI Project Zero, and GIGABYTE Stealth motherboards. These hidden-connector boards route all connections to the back, so no cables run in visible areas. Combined with the clear internal layout, this creates a particularly tidy appearance that puts the installed hardware in the spotlight.
Fans and Cooling Options

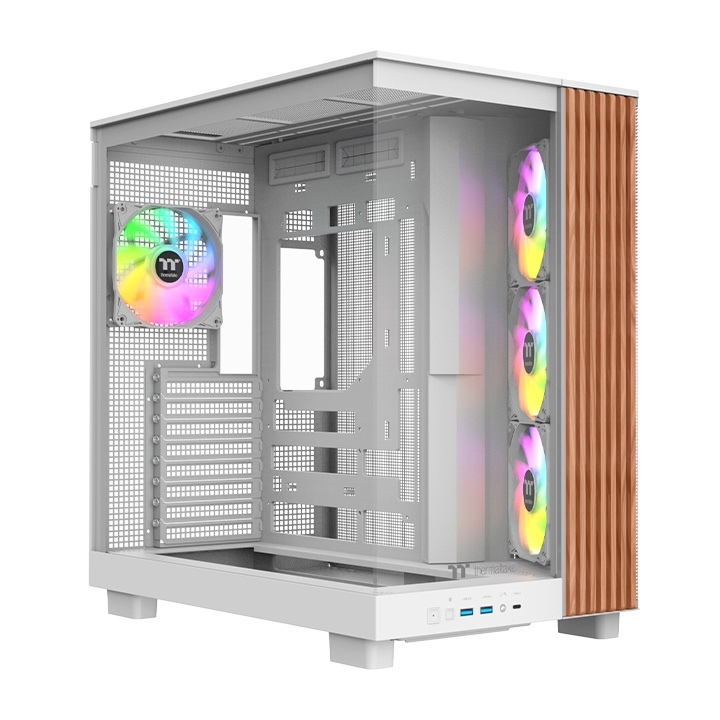

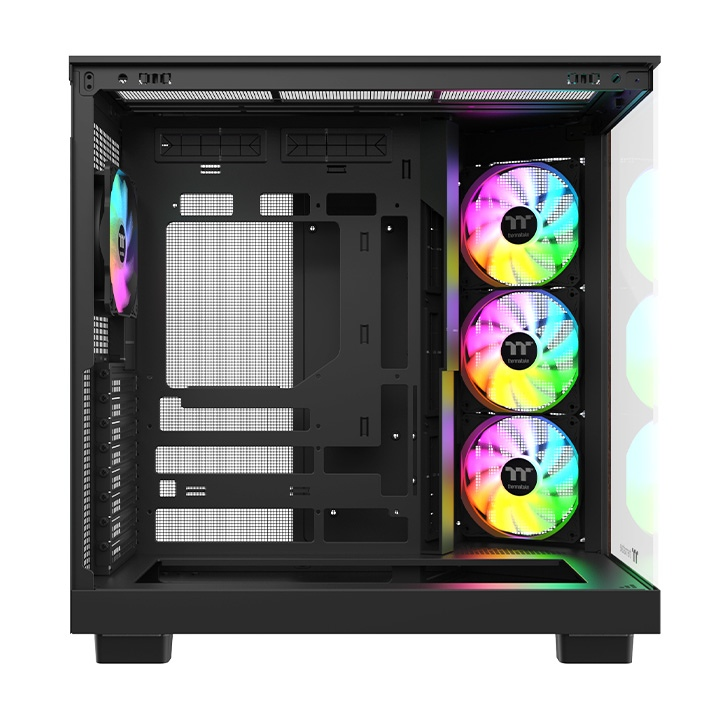

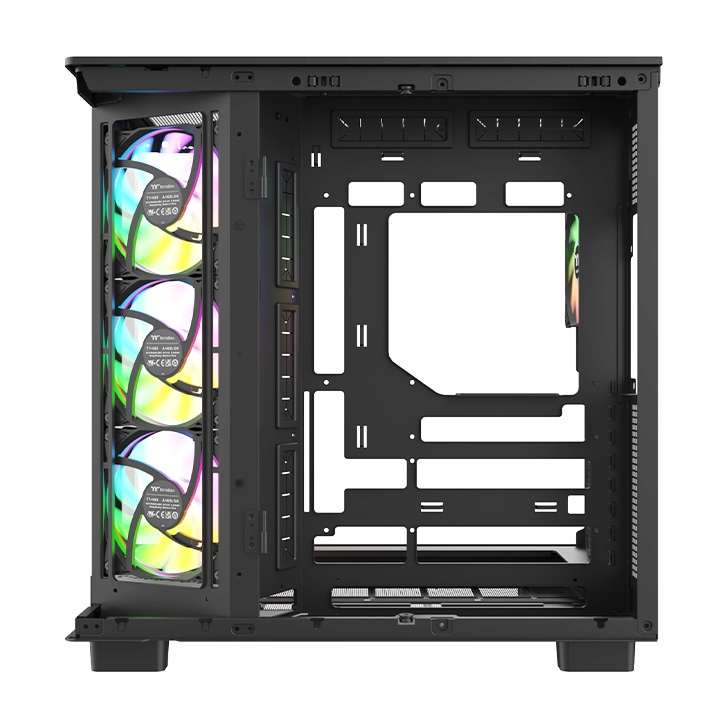

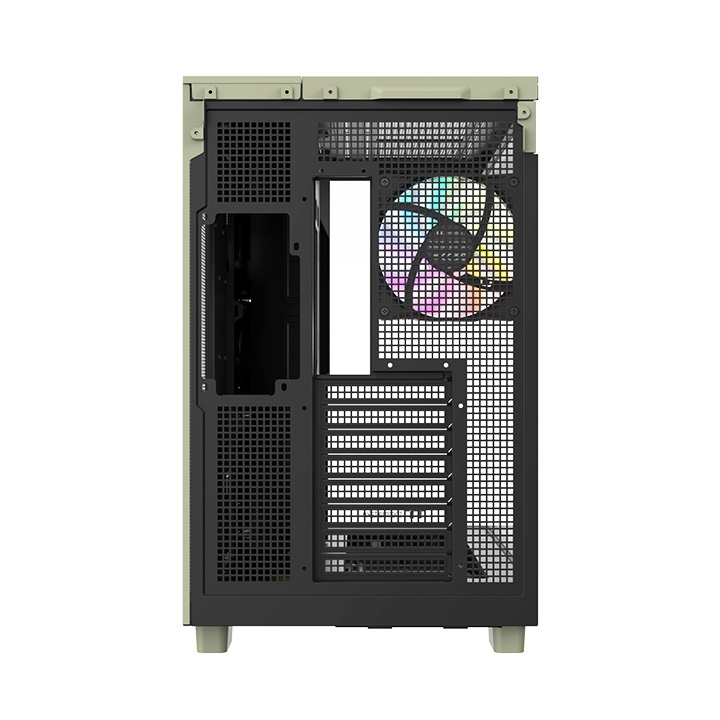

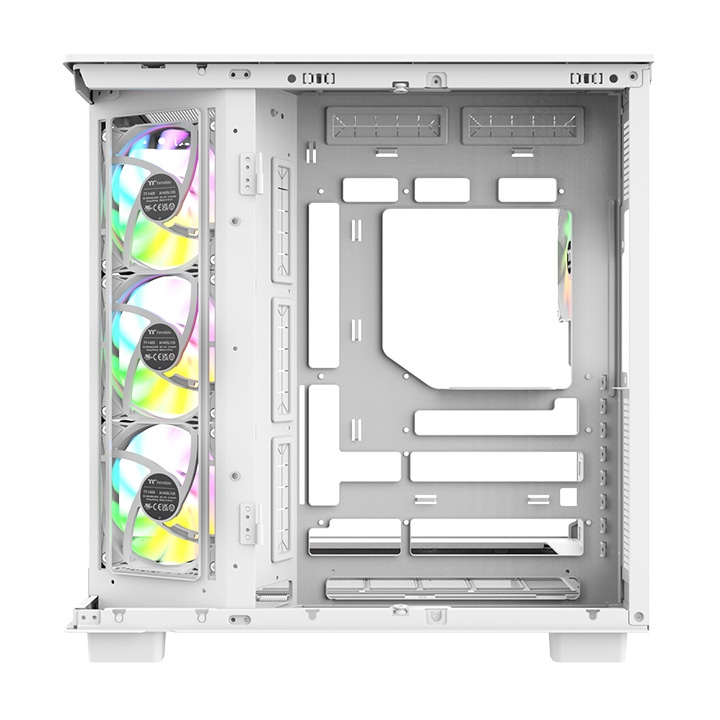

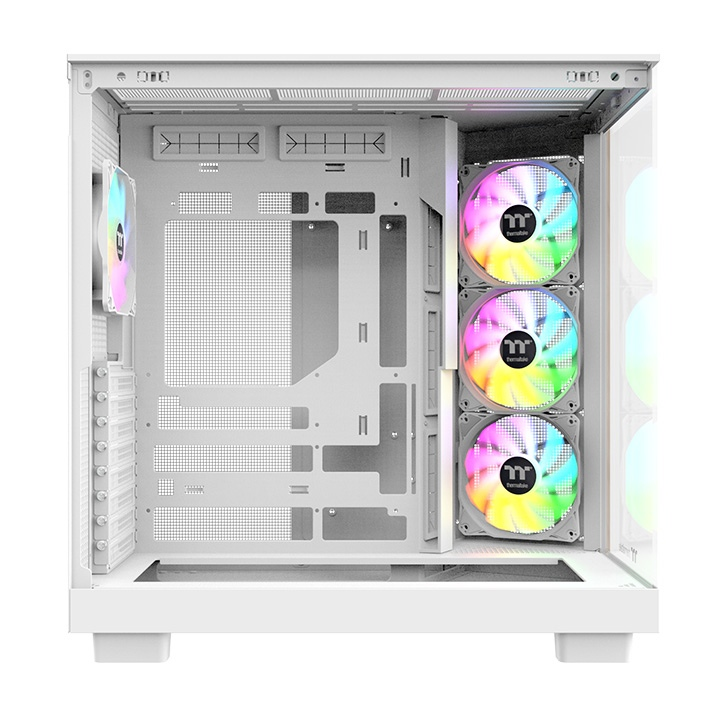

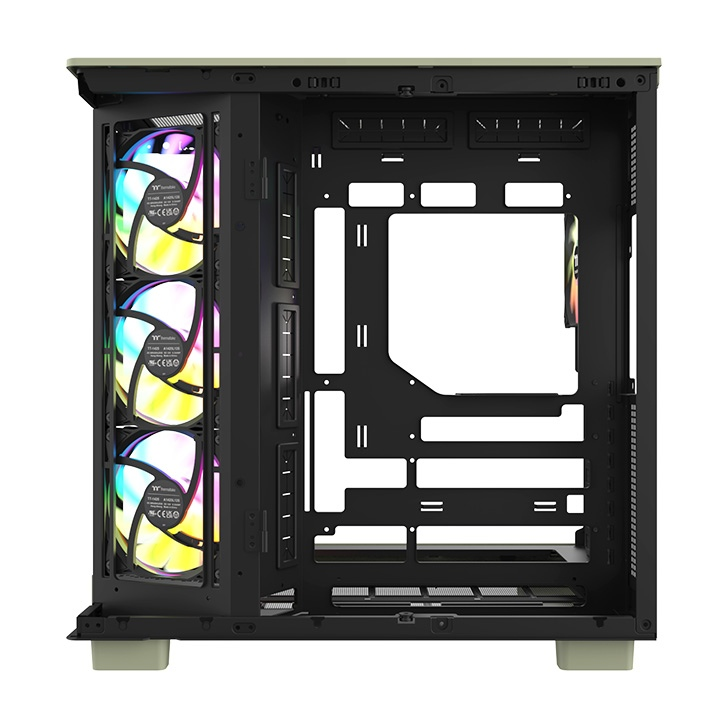

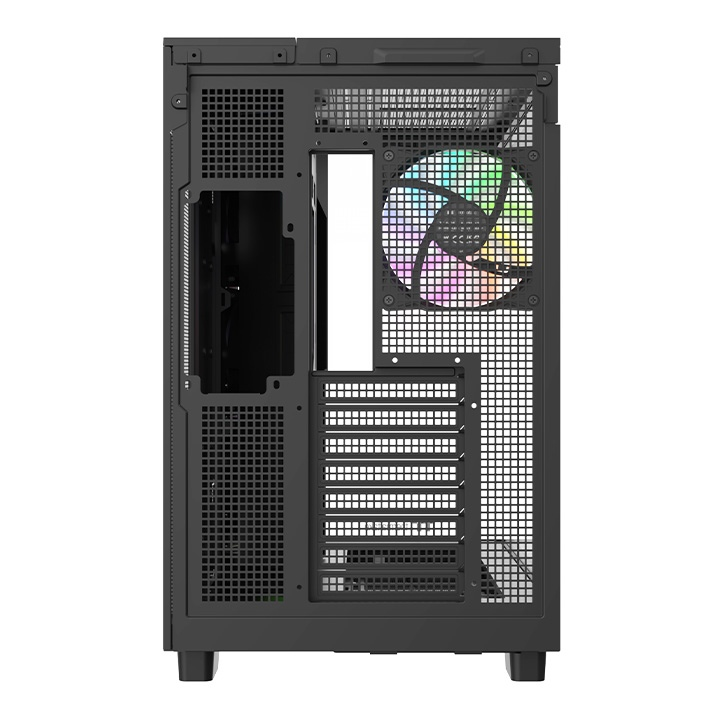

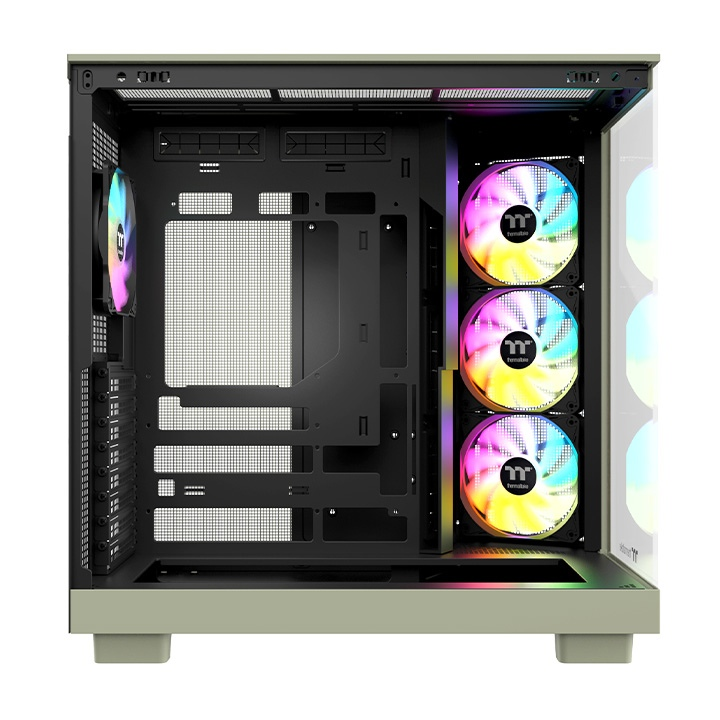

Factory-installed are three 120mm ARGB Lite Reverse fans on the motherboard side and one 120mm ARGB Lite fan at the rear. All fans are hydraulically mounted, ensuring quiet operation, low vibration, and high durability. In total, up to ten 120mm fans can be installed. Radiators up to 360 mm fit both on the top and the motherboard side to enable maximum cooling performance.
Hardware Compatibility

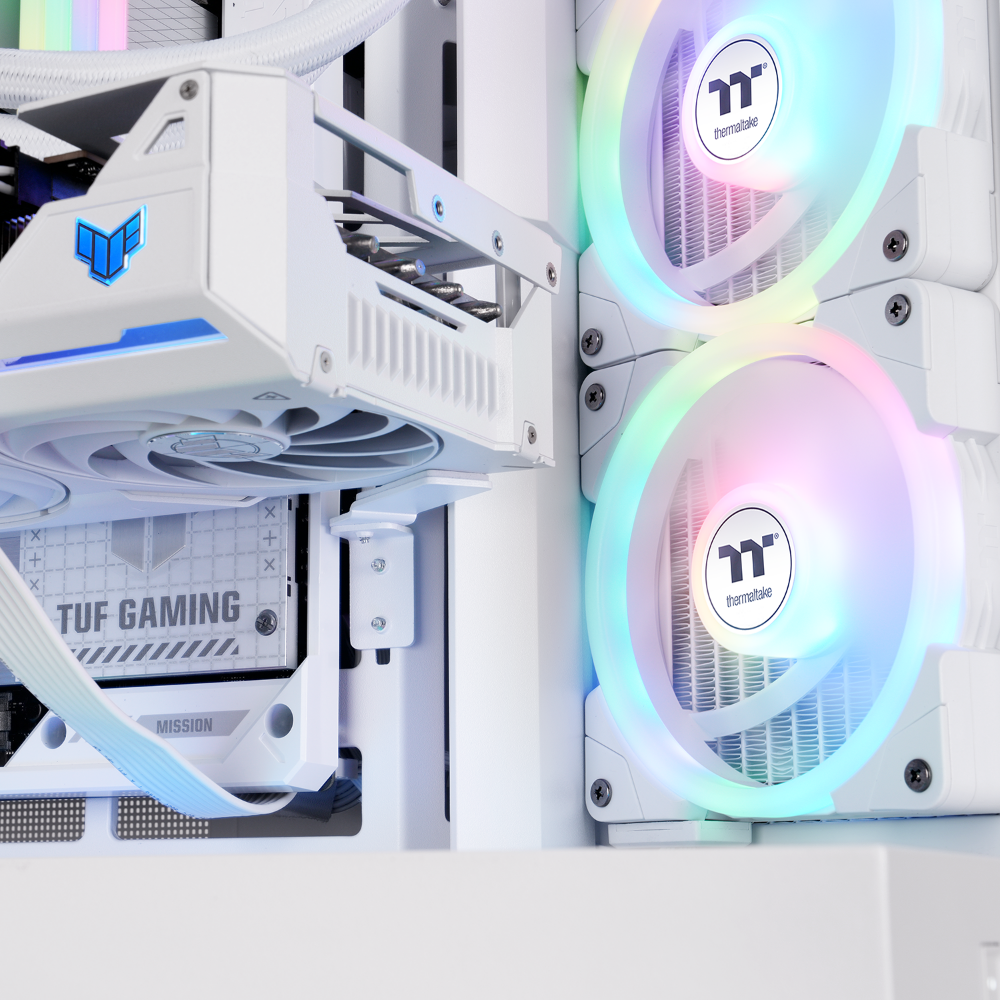

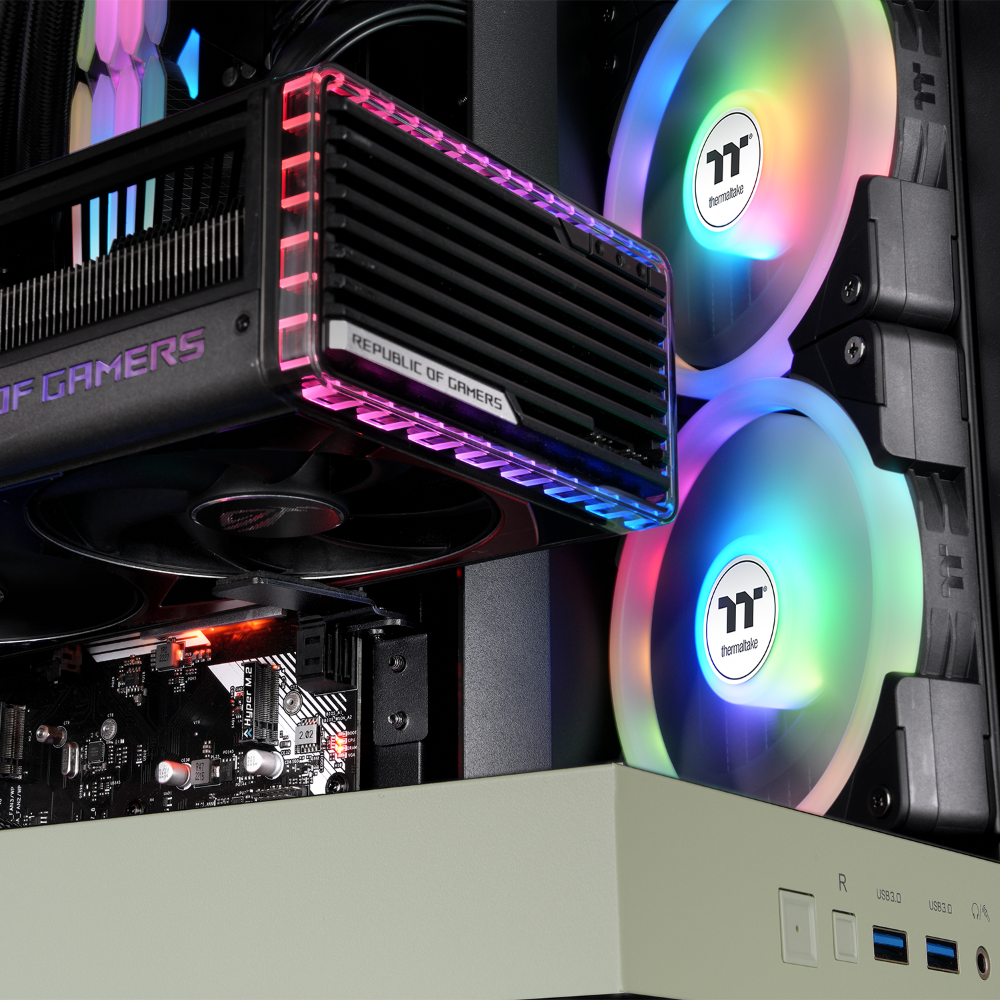

The View 380 XL WS supports ATX, Micro-ATX, and Mini-ITX motherboards and offers space for graphics cards up to 420 mm, CPU coolers up to 160 mm, and power supplies up to 180 mm. An integrated GPU bracket stabilizes heavy graphics cards, while modular drive mounts allow installation of 2.5″ and 3.5″ storage solutions.
Connections and ease of use

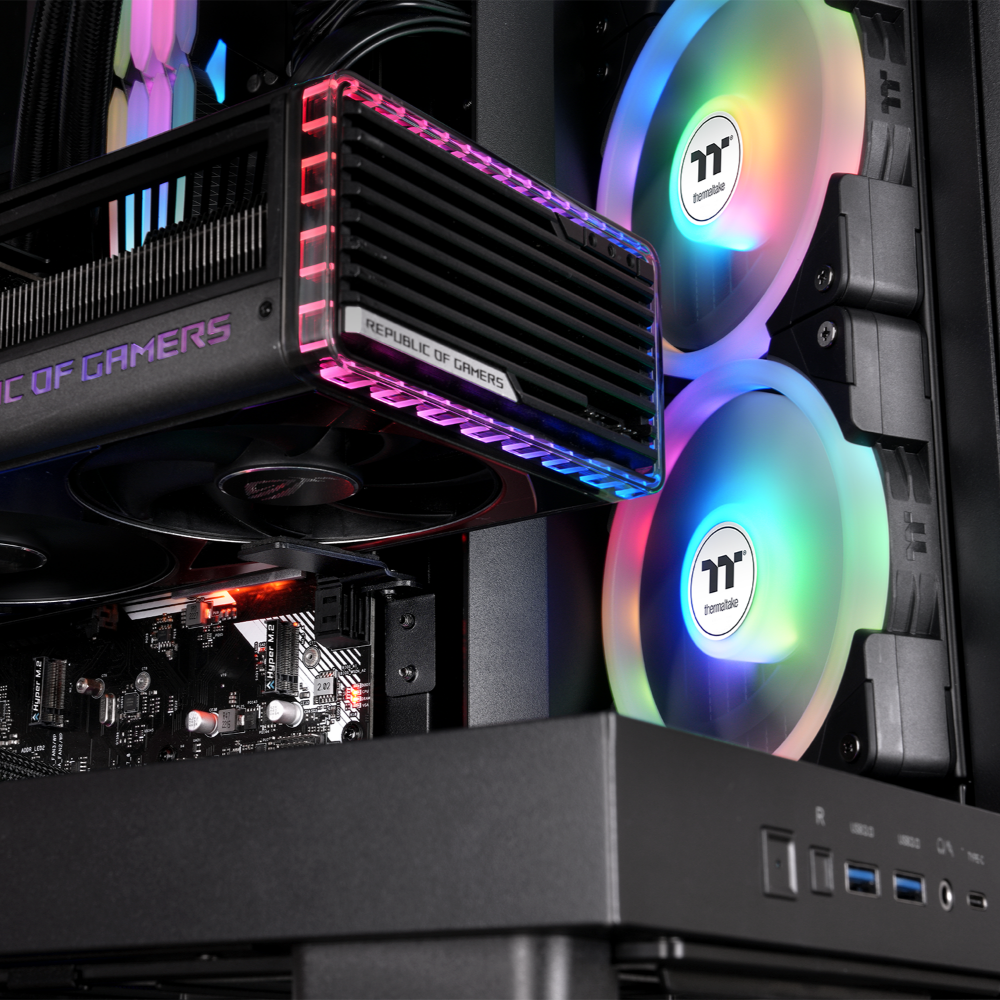

The I/O panel on the top of the case offers USB 3.2 Gen 2 Type-C, two USB 3.0 ports, and HD audio. All connections are easily accessible and seamlessly integrate into the clean design. The modular construction simplifies installation and future upgrades, making the case equally suitable for experienced builders and beginners.
Design meets technology
The View 380 XL WS ARGB combines technical precision with stylish design. The blend of wood finish, glass panels, and efficient internal structure makes it the perfect foundation for builds that balance performance, organization, and aesthetics.
| Series | View |
|---|---|
| Model | View 380 XL WS ARGB |
| TYPE | Midi Tower |
| DIMENSIONS (Height x Width x Depth) | 471 x 288 x 473 mm (18.54 x 11.34 x 18.62 inch) |
| SIDE PANELS | 4mm Tempered Glass x 2 |
| COLOR | Black |
| MATERIAL | SPCC |
| COOLING | Right (intake): 120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 3 Rear (exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| DRIVES | 1 x 3.5”, 2 x 2.5” or 3 x 2.5” |
| EXPANSION | 8 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Hidden-Connector Motherboard | 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| POWER SUPPLY | Standard PS2 Power Supply (optional) |
| FAN SUPPORT | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Right: 3 x 120mm, 2 x 120mm, 1 x 120mm Rear: 1 x 120mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm |
| RADIATOR SUPPORT | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right: 1 x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm |
| OPTIONS | CPU cooler max height: 160mm VGA max length: 420mm Power Supply max length: 180mm |
